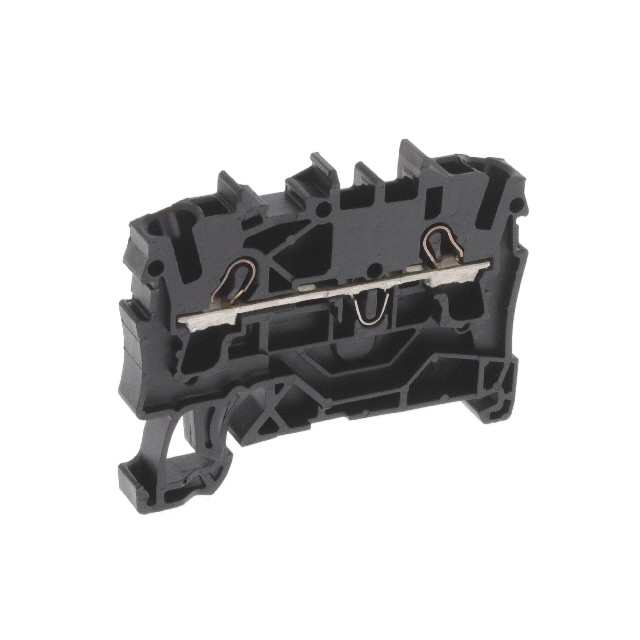

2002-1205

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 22 AWG, 12 AWG, 2.5 MM², CLAMP, 24 A

Search across all available documentation for this part.

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 22 AWG, 12 AWG, 2.5 MM², CLAMP, 24 A

Technical Specifications

Parameters and characteristics for this part

Part	Current - UL	Voltage - UL	Terminal - Width [y]	Number of Levels	Material - Insulation	Stripping Length [Min]	Stripping Length [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Termination Style	Type	Voltage - IEC	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Current - IEC	Number of Positions	Color	For Use With/Related Products	Style
WAGO Corporation 2002-1302	20 A	600 V	5.2 mm	1	Polyamide (PA66) Nylon 6/6	10 mm	12 mm	12 AWG	18 AWG	Push In Spring	Feed Through	800 V	0.75 mm²	4 mm²	32 A
WAGO Corporation 2002-1205	20 A	600 V	5.2 mm	1	Polyamide (PA66) Nylon 6/6	10 mm	12 mm	12 AWG	18 AWG	Push In Spring	Feed Through	800 V	0.75 mm²	4 mm²	32 A	2	Black
WAGO Corporation 2002-2292											End Plate							TOPJOB®S Series
WAGO Corporation 2002-409											Terminal Block Cross Connection					9	Gray	TOPJOB®S Series	Flat Pins
WAGO Corporation 2002-1292											End Plate							TOPJOB®S Series
WAGO Corporation 2002-2291											End Plate						Gray	TOPJOB®S Series
WAGO Corporation 2002-404											Terminal Block Cross Connection					4	Gray	TOPJOB®S Series	Flat Pins
WAGO Corporation 2002-407											Terminal Block Cross Connection					7	Gray	TOPJOB®S Series	Flat Pins
WAGO Corporation 2002-1202	20 A	600 V	5.2 mm	1	Polyamide (PA66) Nylon 6/6	10 mm	12 mm	12 AWG	18 AWG	Push In Spring	Feed Through	800 V	0.75 mm²	4 mm²	32 A	2
WAGO Corporation 2002-402											Terminal Block Cross Connection					2	Gray	TOPJOB®S Series	Flat Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 2 Position Feed Through Black 12-18 AWG
