316-037-421-107

Active

EDAC Inc.

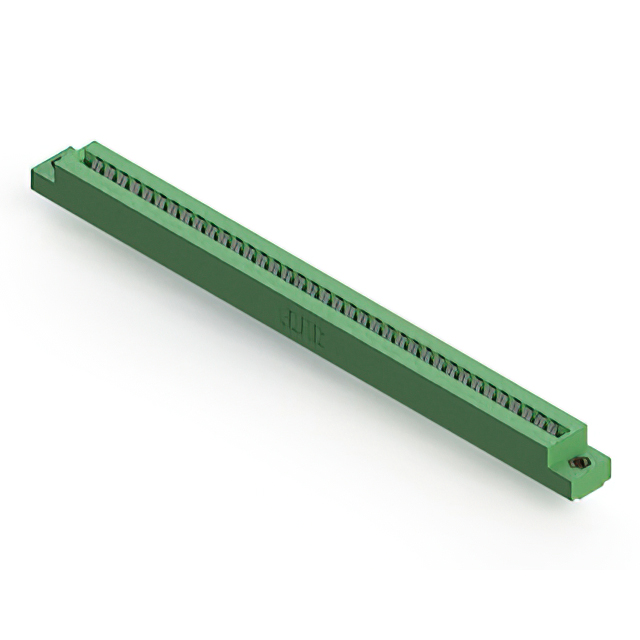

CARD EDGE CONNECTOR, 37 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, M3, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

316-037-421-107

Active

EDAC Inc.

CARD EDGE CONNECTOR, 37 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, M3, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	316-037-421-107

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Panel Mount
Number of Positions	74
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

316-037 Series

Part	Termination	Flange Feature	Pitch [x]	Pitch [x]	Contact Finish	Features	Material - Insulation	Number of Positions	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Rows	Read Out	Termination Rows	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Contact Type	Card Type	Color	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 316-037-421-168	Solder	4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	Tin	Card Guides	Polyester Thermoplastic	74	Panel Mount Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Dual	1	37	37	37	Cantilever	Non Specified - Dual Edge	Green	Copper Alloy	-40 °C	105 ░C	Female
EDAC Inc. 316-037-421-107	Solder	Flush Mount M3 Threaded Insert Top Opening	0.156 in	3.96 mm	Tin		Polyester Thermoplastic	74	Panel Mount Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Dual	1	37	37	37	Cantilever	Non Specified - Dual Edge	Green	Copper Alloy	-40 °C	105 ░C	Female
EDAC Inc. 316-037-420-168	Solder	4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	Tin	Card Guides	Polyester Thermoplastic	74	Panel Mount Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Dual	1	37	37	37	Cantilever	Non Specified - Dual Edge	Green	Copper Alloy	-40 °C	105 ░C	Female
EDAC Inc. 316-037-521-112	Solder	Flush Mount Side Opening Unthreaded	0.156 in	3.96 mm	Gold		Polyester Thermoplastic	74	Panel Mount Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Dual	1	37	37	37	Cantilever	Non Specified - Dual Edge	Green	Copper Alloy	-40 °C	105 ░C	Female	10 Áin	0.25 Ám	3.25 mm	0.128 "
EDAC Inc. 316-037-420-178	Solder	4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	Tin	Card Guides	Polyester Thermoplastic	74	Panel Mount Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Dual	1	37	37	37	Cantilever	Non Specified - Dual Edge	Green	Copper Alloy	-40 °C	105 ░C	Female
EDAC Inc. 316-037-400-168	Solder Eyelet(s)	4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	Tin	Card Guides	Polyester Thermoplastic	74		1.37 mm	0.054 "	1.78 mm	0.07 in	2	Dual	1	37	37	37	Cantilever	Non Specified - Dual Edge	Green	Copper Alloy	-40 °C	105 ░C	Female
EDAC Inc. 316-037-420-107	Solder	Flush Mount M3 Threaded Insert Top Opening	0.156 in	3.96 mm	Tin		Polyester Thermoplastic	74	Panel Mount Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Dual	1	37	37	37	Cantilever	Non Specified - Dual Edge	Green	Copper Alloy	-40 °C	105 ░C	Female
EDAC Inc. 316-037-421-102	Solder	Flush Mount Top Opening Unthreaded	0.156 in	3.96 mm	Tin		Polyester Thermoplastic	74	Panel Mount Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Dual	1	37	37	37	Cantilever	Non Specified - Dual Edge	Green	Copper Alloy	-40 °C	105 ░C	Female			3.25 mm	0.128 "
EDAC Inc. 316-037-400-108	Solder Eyelet(s)	4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	Tin		Polyester Thermoplastic	74		1.37 mm	0.054 "	1.78 mm	0.07 in	2	Dual	1	37	37	37	Cantilever	Non Specified - Dual Edge	Green	Copper Alloy	-40 °C	105 ░C	Female
EDAC Inc. 316-037-400-103	Solder Eyelet(s)	Floating Bobbin Flush Mount	0.156 in	3.96 mm	Tin		Polyester Thermoplastic	74		1.37 mm	0.054 "	1.78 mm	0.07 in	2	Dual	1	37	37	37	Cantilever	Non Specified - Dual Edge	Green	Copper Alloy	-40 °C	105 ░C	Female			2.95 mm	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 21.26
Newark	Each	1	$ 24.69
		100	$ 15.61
		250	$ 12.34
		500	$ 11.19
		1000	$ 9.49

Description

General part information

316-037 Series

74 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
