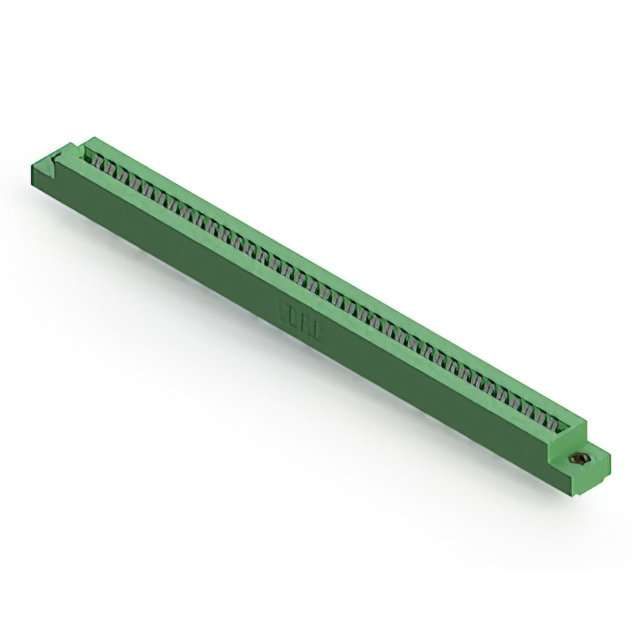

316-037-420-107
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 37 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
316-037-420-107
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 37 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 316-037-420-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 74 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
316-037 Series
| Part | Termination | Flange Feature | Pitch [x] | Pitch [x] | Contact Finish | Features | Material - Insulation | Number of Positions | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Read Out | Termination Rows | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Contact Type | Card Type | Color | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | Tin | Card Guides | Polyester Thermoplastic | 74 | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 1 | 37 | 37 | 37 | Cantilever | Non Specified - Dual Edge | Green | Copper Alloy | -40 °C | 105 ░C | Female | ||||
EDAC Inc. | Solder | Flush Mount M3 Threaded Insert Top Opening | 0.156 in | 3.96 mm | Tin | Polyester Thermoplastic | 74 | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 1 | 37 | 37 | 37 | Cantilever | Non Specified - Dual Edge | Green | Copper Alloy | -40 °C | 105 ░C | Female | |||||
EDAC Inc. | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | Tin | Card Guides | Polyester Thermoplastic | 74 | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 1 | 37 | 37 | 37 | Cantilever | Non Specified - Dual Edge | Green | Copper Alloy | -40 °C | 105 ░C | Female | ||||
EDAC Inc. | Solder | Flush Mount Side Opening Unthreaded | 0.156 in | 3.96 mm | Gold | Polyester Thermoplastic | 74 | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 1 | 37 | 37 | 37 | Cantilever | Non Specified - Dual Edge | Green | Copper Alloy | -40 °C | 105 ░C | Female | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " | |
EDAC Inc. | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | Tin | Card Guides | Polyester Thermoplastic | 74 | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 1 | 37 | 37 | 37 | Cantilever | Non Specified - Dual Edge | Green | Copper Alloy | -40 °C | 105 ░C | Female | ||||
EDAC Inc. | Solder Eyelet(s) | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | Tin | Card Guides | Polyester Thermoplastic | 74 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 1 | 37 | 37 | 37 | Cantilever | Non Specified - Dual Edge | Green | Copper Alloy | -40 °C | 105 ░C | Female | |||||
EDAC Inc. | Solder | Flush Mount M3 Threaded Insert Top Opening | 0.156 in | 3.96 mm | Tin | Polyester Thermoplastic | 74 | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 1 | 37 | 37 | 37 | Cantilever | Non Specified - Dual Edge | Green | Copper Alloy | -40 °C | 105 ░C | Female | |||||
EDAC Inc. | Solder | Flush Mount Top Opening Unthreaded | 0.156 in | 3.96 mm | Tin | Polyester Thermoplastic | 74 | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 1 | 37 | 37 | 37 | Cantilever | Non Specified - Dual Edge | Green | Copper Alloy | -40 °C | 105 ░C | Female | 3.25 mm | 0.128 " | |||
EDAC Inc. | Solder Eyelet(s) | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | Tin | Polyester Thermoplastic | 74 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 1 | 37 | 37 | 37 | Cantilever | Non Specified - Dual Edge | Green | Copper Alloy | -40 °C | 105 ░C | Female | ||||||
EDAC Inc. | Solder Eyelet(s) | Floating Bobbin Flush Mount | 0.156 in | 3.96 mm | Tin | Polyester Thermoplastic | 74 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 1 | 37 | 37 | 37 | Cantilever | Non Specified - Dual Edge | Green | Copper Alloy | -40 °C | 105 ░C | Female | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
316-037 Series
74 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
