1456983-3
ActiveTE Connectivity Raychem Cable Protection

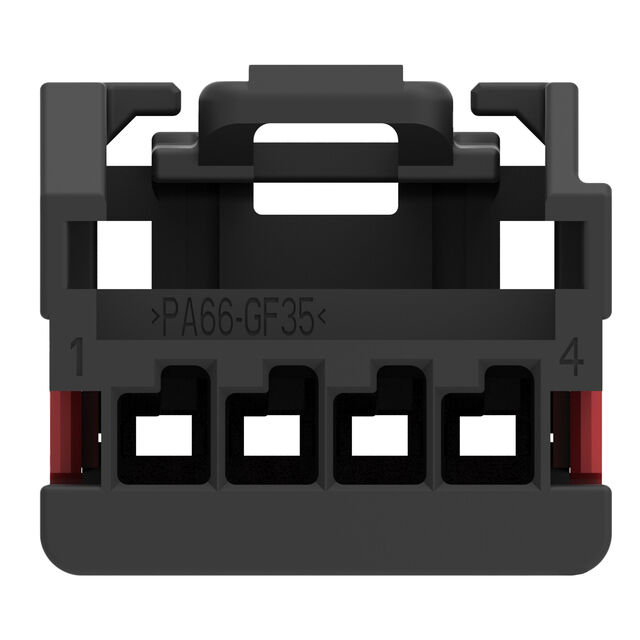

1X4 FEM UNSEALED LP ASSY KEY B
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsGET 0.64 Interconnection System
1456983-3
ActiveTE Connectivity Raychem Cable Protection
1X4 FEM UNSEALED LP ASSY KEY B
Deep-Dive with AI
DocumentsGET 0.64 Interconnection System
Technical Specifications
Parameters and characteristics for this part
| Specification | 1456983-3 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Features | Connector Position Assurance (CPA), Terminal Position Assurance (TPA) |
| Insulation Material | Nylon, Polyamide (PA), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.70 | |
| 10 | $ 1.48 | |||
| 25 | $ 1.42 | |||
| 50 | $ 1.39 | |||
| 100 | $ 1.32 | |||
| 250 | $ 1.20 | |||
| 900 | $ 1.07 | |||
| 1800 | $ 0.91 | |||
| 2700 | $ 0.88 | |||
Description
General part information
1456983 Series
4 Position Housing, Housing for Female Terminals, Wire-to-Wire, 2.54 mm [.1 in] Centerline, Black, Wire & Cable, Signal, Get .64 Connector System
