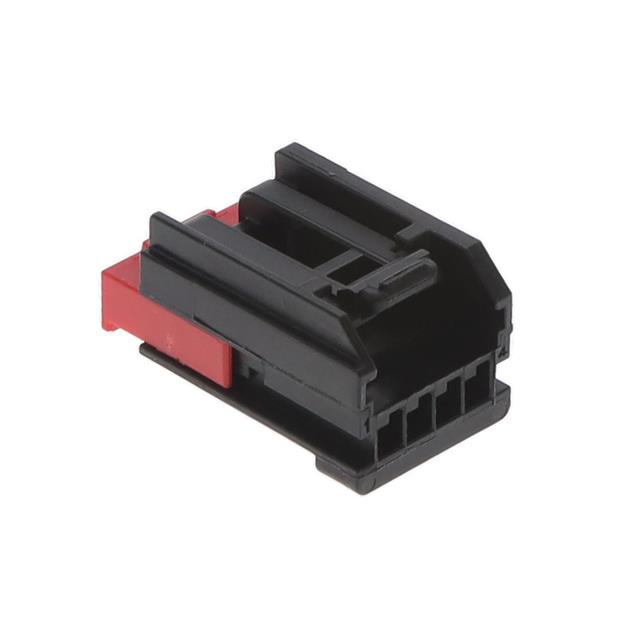

1456983-1
ActiveTE Connectivity Raychem Cable Protection
1X4 FEM UNSEALED LOW PROFILE, KE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1456983-1
ActiveTE Connectivity Raychem Cable Protection
1X4 FEM UNSEALED LOW PROFILE, KE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1456983-1 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Features | Connector Position Assurance (CPA) |
| Insulation Material | Nylon, Polyamide (PA), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.31 | |
| 10 | $ 1.11 | |||
| 25 | $ 1.06 | |||
| 50 | $ 1.04 | |||
| 100 | $ 0.99 | |||
| 250 | $ 0.90 | |||
| 900 | $ 0.79 | |||
| 1800 | $ 0.68 | |||
| 2700 | $ 0.65 | |||
Description
General part information
1456983 Series
4 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
