CDFV7W2113L411

Active

MH Connectors

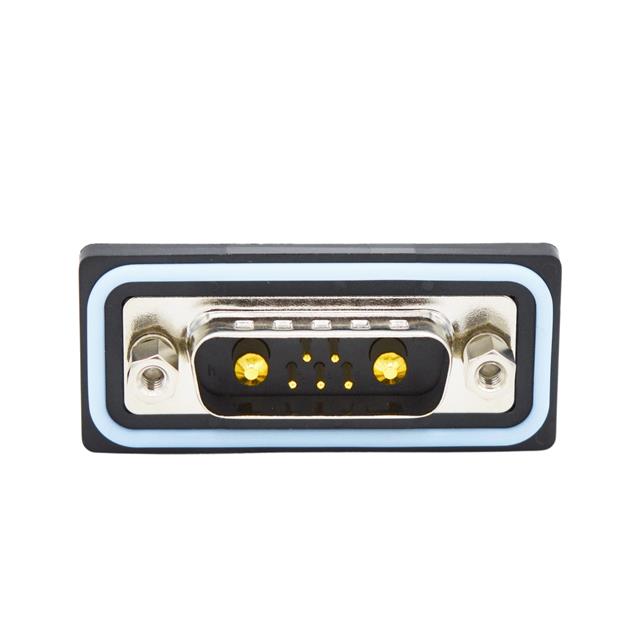

CONN D-SUB PLUG 7P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CDFV7W2113L411

Active

MH Connectors

CONN D-SUB PLUG 7P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CDFV7W2113L411

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	7
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2 (DA, A) - 7W2
Termination	Solder

CDFV7W2 Series

Part	Shell Size, Connector Layout	Termination	Contact Finish Thickness	Contact Finish Thickness	Dielectric Material	Shell Material, Finish	Contact Material	Contact Finish	Connector Type	Number of Positions [custom]	Number of Positions [custom]	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Material Flammability Rating	Number of Rows	Ingress Protection	Mounting Type	Contact Type	Current Rating (Amps)	Color	Contact Finish Thickness	Features
MH Connectors CDFV7W2213L452	2 (DA A) - 7W2	Solder	0.76 Ám	30 Áin	Polybutylene Terephthalate (PBT)	Nickel Plated Steel	Brass	Gold	Receptacle Female Sockets	7	2	Combo D-Sub	-25 °C	85 °C	Female Screwlock (4-40) Mating Side	UL94 V-0	2	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	Signal and Power	5 A 40 A	Black
MH Connectors CDFV7W2213L451	2 (DA A) - 7W2	Solder			Polybutylene Terephthalate (PBT)	Nickel Plated Steel	Brass	Gold	Receptacle Female Sockets	7	2	Combo D-Sub	-25 °C	85 °C	Female Screwlock (4-40) Mating Side	UL94 V-0	2	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	Signal and Power	5 A 40 A	Black	Flash
MH Connectors CDFV7W2213L211	2 (DA A) - 7W2	Solder			Polybutylene Terephthalate (PBT)	Nickel Plated Steel	Brass	Gold	Receptacle Female Sockets	7	2	Combo D-Sub	-25 °C	85 °C	Female Screwlock (4-40) Mating Side	UL94 V-0	2	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	Signal and Power	5 A 20 A	Black	Flash
MH Connectors CDFV7W2113L211	2 (DA A) - 7W2	Solder			Polybutylene Terephthalate (PBT)	Nickel Plated Steel	Brass	Gold	Male Pins Plug	7	2	Combo D-Sub	-25 °C	85 °C	Female Screwlock (4-40) Mating Side	UL94 V-0	2	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	Signal and Power	5 A 20 A	Black	Flash	Grounding Indents
MH Connectors CDFV7W2113L412	2 (DA A) - 7W2	Solder	0.76 Ám	30 Áin	Polybutylene Terephthalate (PBT)	Nickel Plated Steel	Brass	Gold	Male Pins Plug	7	2	Combo D-Sub	-25 °C	85 °C	Female Screwlock (4-40) Mating Side	UL94 V-0	2	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	Signal and Power	5 A 40 A	Black		Grounding Indents
MH Connectors CDFV7W2113L251	2 (DA A) - 7W2	Solder			Polybutylene Terephthalate (PBT)	Nickel Plated Steel	Brass	Gold	Male Pins Plug	7	2	Combo D-Sub	-25 °C	85 °C	Female Screwlock (4-40) Mating Side	UL94 V-0	2	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	Signal and Power	5 A 20 A	Black	Flash	Board Lock Grounding Indents
MH Connectors CDFV7W2113L212	2 (DA A) - 7W2	Solder	0.76 Ám	30 Áin	Polybutylene Terephthalate (PBT)	Nickel Plated Steel	Brass	Gold	Male Pins Plug	7	2	Combo D-Sub	-25 °C	85 °C	Female Screwlock (4-40) Mating Side	UL94 V-0	2	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	Signal and Power	5 A 20 A	Black		Grounding Indents
MH Connectors CDFV7W2213L412	2 (DA A) - 7W2	Solder	0.76 Ám	30 Áin	Polybutylene Terephthalate (PBT)	Nickel Plated Steel	Brass	Gold	Receptacle Female Sockets	7	2	Combo D-Sub	-25 °C	85 °C	Female Screwlock (4-40) Mating Side	UL94 V-0	2	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	Signal and Power	5 A 40 A	Black
MH Connectors CDFV7W2213L212	2 (DA A) - 7W2	Solder	0.76 Ám	30 Áin	Polybutylene Terephthalate (PBT)	Nickel Plated Steel	Brass	Gold	Receptacle Female Sockets	7	2	Combo D-Sub	-25 °C	85 °C	Female Screwlock (4-40) Mating Side	UL94 V-0	2	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	Signal and Power	5 A 20 A	Black
MH Connectors CDFV7W2113L411	2 (DA A) - 7W2	Solder			Polybutylene Terephthalate (PBT)	Nickel Plated Steel	Brass	Gold	Male Pins Plug	7	2	Combo D-Sub	-25 °C	85 °C	Female Screwlock (4-40) Mating Side	UL94 V-0	2	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	Signal and Power	5 A 40 A	Black	Flash	Grounding Indents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9.43
		10	$ 8.36
		25	$ 8.04
		54	$ 7.71
		108	$ 7.55

Description

General part information

CDFV7W2 Series

7 (5 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector

Documents

Technical documentation and resources
