CDFV7W2213L452
ActiveMH Connectors

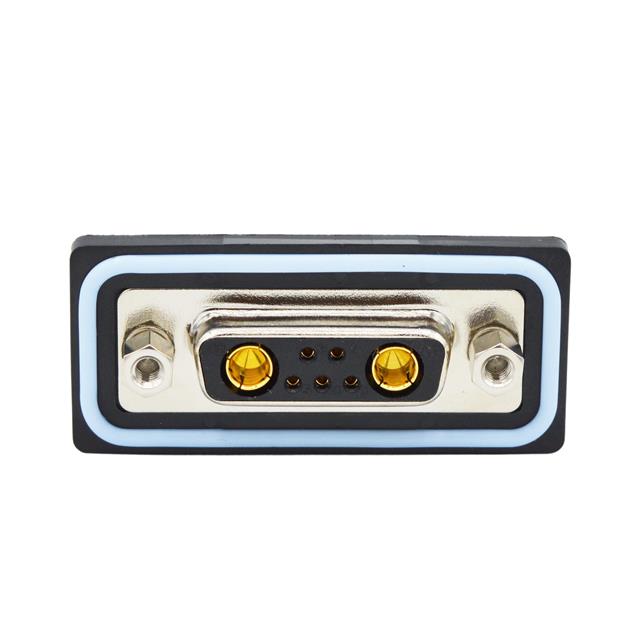

COMBINATION LAYOUT D SUB CONNECTOR, IP67, NANOOK SERIES, DA-7W2, RECEPTACLE, 7 CONTACTS
Deep-Dive with AI
Search across all available documentation for this part.
CDFV7W2213L452
ActiveMH Connectors
COMBINATION LAYOUT D SUB CONNECTOR, IP67, NANOOK SERIES, DA-7W2, RECEPTACLE, 7 CONTACTS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CDFV7W2213L452 |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Brass |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 40 A, 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions [custom] | 7 |
| Number of Positions [custom] | 2 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 (DA, A) - 7W2 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CDFV7W2 Series
7 (5 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
