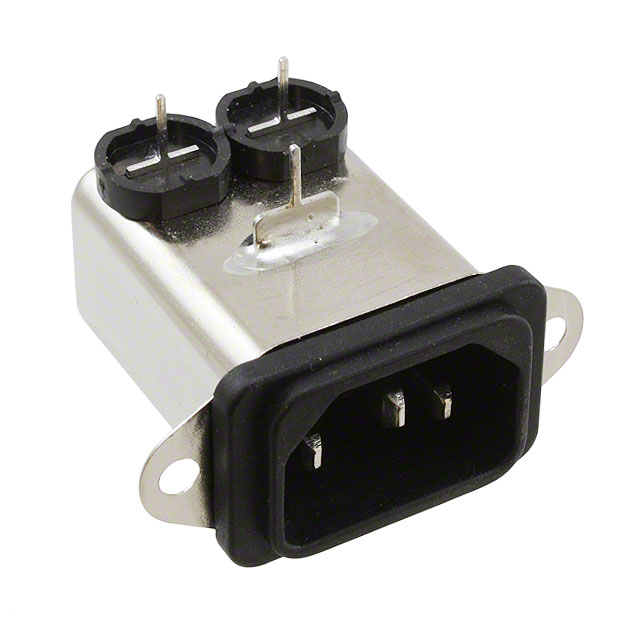

FN9226B-10-02
ActiveTE Connectivity Raychem Cable Protection
PWR ENT RCPT IEC320-C14 PNL SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FN9226B-10-02
ActiveTE Connectivity Raychem Cable Protection
PWR ENT RCPT IEC320-C14 PNL SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FN9226B-10-02 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | UL, CSA, SEMKO, ENEC |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Filter | 10 A |
| Features | Bleed Resistor |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Panel Mount, Flange, Through Hole, Right Angle |
| Panel Cutout Dimensions [x] | 34.4 mm |
| Panel Cutout Dimensions [y] | 22.6 mm |
| Panel Thickness | 0.224 in |
| Panel Thickness | 5.7 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 18.78 | |
| 10 | $ 14.46 | |||
| 25 | $ 13.08 | |||
| 40 | $ 12.44 | |||
| 80 | $ 11.57 | |||
| 230 | $ 10.39 | |||
| 440 | $ 9.76 | |||
| 945 | $ 9.08 | |||
Description
General part information
FN9226 Series
Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
