Technical Specifications
Parameters and characteristics for this part
| Specification | FN9226B-3-02 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | UL, CSA, SEMKO, ENEC |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Filter | 3 A |
| Features | Bleed Resistor |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Panel Mount, Flange, Through Hole, Right Angle |
| Panel Cutout Dimensions [x] | 34.4 mm |
| Panel Cutout Dimensions [y] | 22.6 mm |
| Panel Thickness | 0.224 in |
| Panel Thickness | 5.7 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 18.32 | |
| 10 | $ 14.10 | |||
| 25 | $ 12.75 | |||
| 40 | $ 12.13 | |||
| 80 | $ 11.28 | |||
| 230 | $ 10.13 | |||
| 440 | $ 9.51 | |||
| 945 | $ 8.85 | |||
Description
General part information

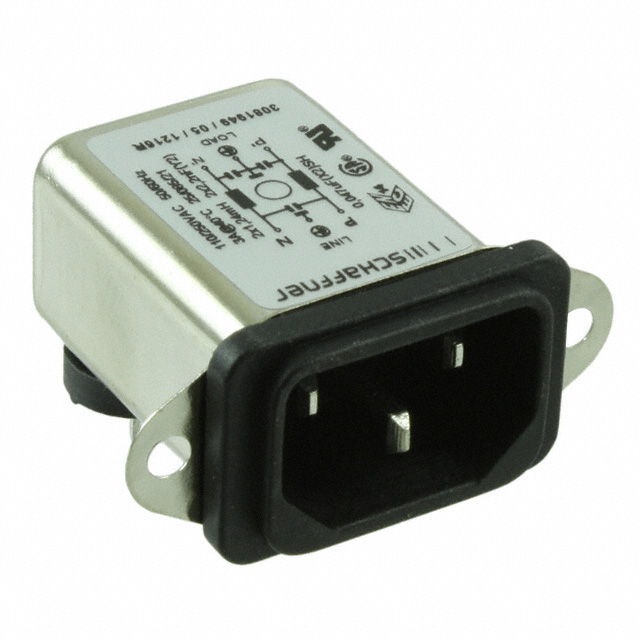

Schaffner FN9226 Series
3 A, Unfiltered, 0 µA Leakage Current @ 250VAC, 50Hz, FASTON / PCB Terminal, 0 µA Leakage Current @ 120VAC, 60Hz, Schaffner FN9226, Inlet Filters
