929975-01-09

Obsolete

3M (TC)

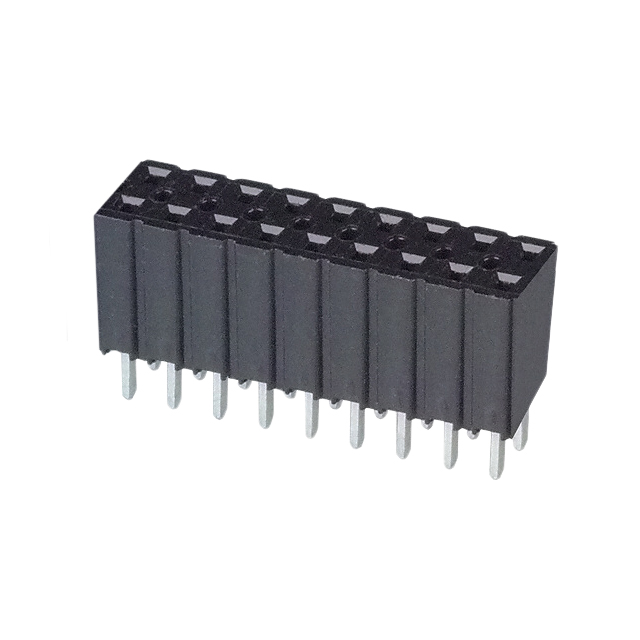

CONN RCPT 18POS 0.1 TIN-LEAD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

929975-01-09

Obsolete

3M (TC)

CONN RCPT 18POS 0.1 TIN-LEAD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929975-01-09

Connector Type	Receptacle
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	8.25 mm
Insulation Height	0.325 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	1500 V

929975 Series

Part	Termination	Insulation Color	Insulation Height	Insulation Height	Number of Rows	Contact Finish - Mating	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Mounting Type	Contact Finish - Post	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Current Rating (Amps)	Connector Type	Insulation Material	Fastening Type	Contact Shape	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating
3M (TC) 929975-01-09	Solder	Black	8.25 mm	0.325 in	2	Tin-Lead	Copper Alloy	2.54 çm	100 çin	All	0.1 in	2.54 mm	3.18 mm	0.125 in	Through Hole	Tin-Lead	Forked	2.54 mm	0.1 in	UL94 V-0	2 A	Receptacle	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	Square	18	2.54 µm	100 µin	-40 °C	105 ░C	1500 V
3M (TC) 929975-01-32-RK	Solder	Black	8.25 mm	0.325 in	2		Copper Alloy	2.54 çm	100 çin	All	0.1 in	2.54 mm	3.18 mm	0.125 in	Through Hole	Tin	Forked	2.54 mm	0.1 in	UL94 V-0	2 A	Receptacle	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	Square	64	2.54 µm	100 µin	-40 °C	105 ░C	1500 V
3M (TC) 929975-01-40-RK	Solder	Black	8.25 mm	0.325 in	2		Copper Alloy	2.54 çm	100 çin	All	0.1 in	2.54 mm	3.18 mm	0.125 in	Through Hole	Tin	Forked	2.54 mm	0.1 in	UL94 V-0	2 A	Receptacle	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	Square	80	2.54 µm	100 µin	-40 °C	105 ░C	1500 V
3M (TC) 929975-01-16	Solder	Black	8.25 mm	0.325 in	2	Tin-Lead	Copper Alloy	2.54 çm	100 çin	All	0.1 in	2.54 mm	3.18 mm	0.125 in	Through Hole	Tin-Lead	Forked	2.54 mm	0.1 in	UL94 V-0	2 A	Receptacle	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	Square		2.54 µm	100 µin	-40 °C	105 ░C	1500 V
3M (TC) 929975-01-01	Solder	Black	8.25 mm	0.325 in	2	Tin-Lead	Copper Alloy	2.54 çm	100 çin	All			3.18 mm	0.125 in	Through Hole	Tin-Lead	Forked	2.54 mm	0.1 in	UL94 V-0	2 A	Receptacle	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	Square	2	2.54 µm	100 µin	-40 °C	105 ░C	1500 V
3M (TC) 929975-01-27-RK	Solder	Black	8.25 mm	0.325 in	2		Copper Alloy	2.54 çm	100 çin	All	0.1 in	2.54 mm	3.18 mm	0.125 in	Through Hole	Tin	Forked	2.54 mm	0.1 in	UL94 V-0	2 A	Receptacle	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	Square	54	2.54 µm	100 µin	-40 °C	105 ░C	1500 V
3M (TC) 929975-01-05	Solder	Black	8.25 mm	0.325 in	2	Tin-Lead	Copper Alloy	2.54 çm	100 çin	All	0.1 in	2.54 mm	3.18 mm	0.125 in	Through Hole	Tin-Lead	Forked	2.54 mm	0.1 in	UL94 V-0	2 A	Receptacle	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	Square	10	2.54 µm	100 µin	-40 °C	105 ░C	1500 V
3M (TC) 929975-01-11	Solder	Black	8.25 mm	0.325 in	2	Tin-Lead	Copper Alloy	2.54 çm	100 çin	All	0.1 in	2.54 mm	3.18 mm	0.125 in	Through Hole	Tin-Lead	Forked	2.54 mm	0.1 in	UL94 V-0	2 A	Receptacle	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	Square	22 positions	2.54 µm	100 µin	-40 °C	105 ░C	1500 V
3M (TC) 929975-01-06	Solder	Black	8.25 mm	0.325 in	2	Tin-Lead	Copper Alloy	2.54 çm	100 çin	All	0.1 in	2.54 mm	3.18 mm	0.125 in	Through Hole	Tin-Lead	Forked	2.54 mm	0.1 in	UL94 V-0	2 A	Receptacle	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	Square	12	2.54 µm	100 µin	-40 °C	105 ░C	1500 V
3M (TC) 929975-01-02-RK	Solder	Black	8.25 mm	0.325 in	2		Copper Alloy	2.54 çm	100 çin	All	0.1 in	2.54 mm	3.18 mm	0.125 in	Through Hole	Tin	Forked	2.54 mm	0.1 in	UL94 V-0	2 A	Receptacle	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	Square	4	2.54 µm	100 µin	-40 °C	105 ░C	1500 V
