929975-01-06 - 929852-01-06-RA

929975-01-06

Obsolete
3M (TC)

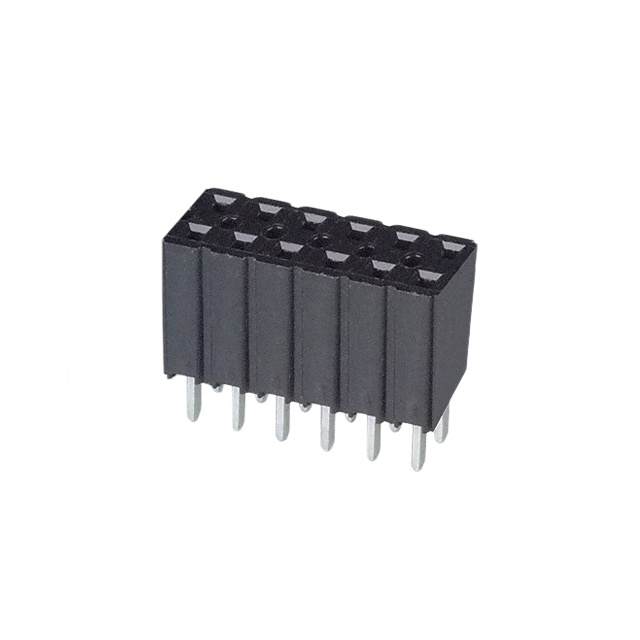

CONN RCPT 12POS 0.1 TIN-LEAD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
929975-01-06 - 929852-01-06-RA

929975-01-06

Obsolete
3M (TC)

CONN RCPT 12POS 0.1 TIN-LEAD PCB

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification929975-01-06
Connector TypeReceptacle
Contact Finish - MatingTin-Lead
Contact Finish - PostTin-Lead
Contact Finish Thickness - Mating2.54 çm
Contact Finish Thickness - Mating100 çin
Contact Finish Thickness - Post2.54 µm
Contact Finish Thickness - Post100 µin
Contact Length - Post [x]3.18 mm
Contact Length - Post [x]0.125 in
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeForked
Current Rating (Amps)2 A
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height8.25 mm
Insulation Height0.325 in
Insulation MaterialPolyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions12
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Pitch - Mating0.1 in
Pitch - Mating2.54 mm
Row Spacing - Mating [x]2.54 mm
Row Spacing - Mating [x]0.1 in
TerminationSolder
Voltage Rating1500 V

929975 Series
