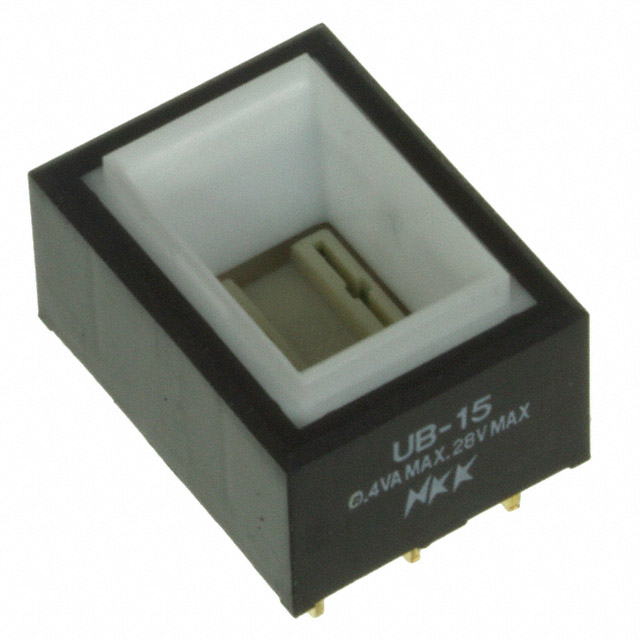

UB15RKG03N

Active

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UB15RKG03N

Active

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UB15RKG03N

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	200000 Cycles
Features	Process Sealed
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

UB15RKG Series

Part	Type	Color - Actuator/Cap	Termination Style	Electrical Life	Illumination Type, Color	Mechanical Life	Current Rating (Amps)	Actuator Marking	Voltage Rating - DC	Switch Function	Voltage Rating - AC	Circuit	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Features	Illumination Voltage (Nominal)
NKK Switches UB15RKG035D-JB	Illuminated Standard	Clear	PC Pin	200000 Cycles	Amber LED	1000000 Cycles	0.4 VA	No Marking	28 V	On-Mom	28 V	SPDT	Rectangular Button	50 °C	-25 °C	Through Hole	Process Sealed	2 VDC
NKK Switches UB15RKG035F-JB	Illuminated Standard	Clear	PC Pin	200000 Cycles	Green LED	1000000 Cycles	0.4 VA	No Marking	28 V	On-Mom	28 V	SPDT	Rectangular Button	50 °C	-25 °C	Through Hole	Process Sealed	2.1 VDC
NKK Switches UB15RKG035F-FF	Illuminated Standard	Green	PC Pin	200000 Cycles	Green LED	1000000 Cycles	0.4 VA	No Marking	28 V	On-Mom	28 V	SPDT	Rectangular Button	50 °C	-25 °C	Through Hole	Process Sealed	2.1 VDC
NKK Switches UB15RKG035F	Illuminated Standard		PC Pin	200000 Cycles	Green LED	1000000 Cycles	0.4 VA	No Marking	28 V	On-Mom	28 V	SPDT	Plunger for Cap	50 °C	-25 °C	Through Hole	Process Sealed	2.1 VDC
NKK Switches UB15RKG03N-F	Standard	Green	PC Pin	200000 Cycles		1000000 Cycles	0.4 VA	No Marking	28 V	On-Mom	28 V	SPDT	Rectangular Button	70 °C	-20 C	Through Hole	Process Sealed
NKK Switches UB15RKG03N-B	Standard	White	PC Pin	200000 Cycles		1000000 Cycles	0.4 VA	No Marking	28 V	On-Mom	28 V	SPDT	Rectangular Button	70 °C	-20 C	Through Hole	Process Sealed
NKK Switches UB15RKG03N	Standard		PC Pin	200000 Cycles		1000000 Cycles	0.4 VA	No Marking	28 V	On-Mom	28 V	SPDT	Plunger for Cap	70 °C	-20 C	Through Hole	Process Sealed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.23
		10	$ 6.51
		25	$ 6.18
		50	$ 5.92
		100	$ 5.73
		250	$ 5.43
		500	$ 4.97
		1000	$ 4.74
Newark	Each	1	$ 14.42
		5	$ 13.45
		10	$ 12.37
		25	$ 11.29
		50	$ 10.21
		100	$ 9.02
		250	$ 8.10

Description

General part information

UB15RKG Series

Pushbutton Switch SPDT Standard Through Hole

Documents

Technical documentation and resources
