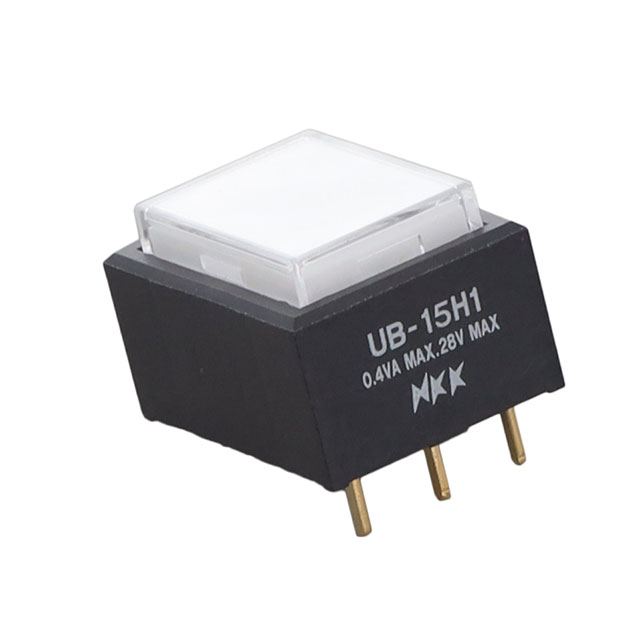

UB15RKG035D-JB

Active

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UB15RKG035D-JB

Active

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UB15RKG035D-JB

Actuator Marking	No Marking
Actuator Type	Rectangular, Button
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	0.4 VA
Electrical Life	200000 Cycles
Features	Process Sealed
Illumination Type, Color	Amber, LED
Illumination Voltage (Nominal)	2 VDC
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

UB15RKG Series

Part	Type	Color - Actuator/Cap	Termination Style	Electrical Life	Illumination Type, Color	Mechanical Life	Current Rating (Amps)	Actuator Marking	Voltage Rating - DC	Switch Function	Voltage Rating - AC	Circuit	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Features	Illumination Voltage (Nominal)
NKK Switches UB15RKG035D-JB	Illuminated Standard	Clear	PC Pin	200000 Cycles	Amber LED	1000000 Cycles	0.4 VA	No Marking	28 V	On-Mom	28 V	SPDT	Rectangular Button	50 °C	-25 °C	Through Hole	Process Sealed	2 VDC
NKK Switches UB15RKG035F-JB	Illuminated Standard	Clear	PC Pin	200000 Cycles	Green LED	1000000 Cycles	0.4 VA	No Marking	28 V	On-Mom	28 V	SPDT	Rectangular Button	50 °C	-25 °C	Through Hole	Process Sealed	2.1 VDC
NKK Switches UB15RKG035F-FF	Illuminated Standard	Green	PC Pin	200000 Cycles	Green LED	1000000 Cycles	0.4 VA	No Marking	28 V	On-Mom	28 V	SPDT	Rectangular Button	50 °C	-25 °C	Through Hole	Process Sealed	2.1 VDC
NKK Switches UB15RKG035F	Illuminated Standard		PC Pin	200000 Cycles	Green LED	1000000 Cycles	0.4 VA	No Marking	28 V	On-Mom	28 V	SPDT	Plunger for Cap	50 °C	-25 °C	Through Hole	Process Sealed	2.1 VDC
NKK Switches UB15RKG03N-F	Standard	Green	PC Pin	200000 Cycles		1000000 Cycles	0.4 VA	No Marking	28 V	On-Mom	28 V	SPDT	Rectangular Button	70 °C	-20 C	Through Hole	Process Sealed
NKK Switches UB15RKG03N-B	Standard	White	PC Pin	200000 Cycles		1000000 Cycles	0.4 VA	No Marking	28 V	On-Mom	28 V	SPDT	Rectangular Button	70 °C	-20 C	Through Hole	Process Sealed
NKK Switches UB15RKG03N	Standard		PC Pin	200000 Cycles		1000000 Cycles	0.4 VA	No Marking	28 V	On-Mom	28 V	SPDT	Plunger for Cap	70 °C	-20 C	Through Hole	Process Sealed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.71
		10	$ 10.58
		25	$ 10.07
		50	$ 9.56
		100	$ 9.22
		250	$ 8.65
		500	$ 7.92
		1000	$ 7.00
Newark	Each	1	$ 22.07
		5	$ 20.96
		10	$ 19.43
		25	$ 17.73
		50	$ 15.34
		100	$ 14.32
		250	$ 13.04

Description

General part information

UB15RKG Series

Pushbutton Switch SPDT Standard, Illuminated Through Hole
