10025026-10002CLF

Active

Amphenol ICC (FCI)

CONN PCI EXP FMALE 98POS 0.039

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet gs-12-233 Other Related Document +1

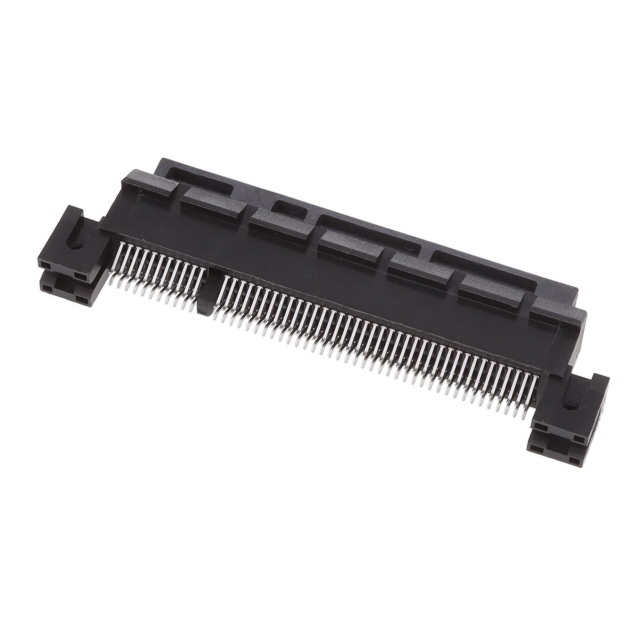

10025026-10002CLF

Active

Amphenol ICC (FCI)

CONN PCI EXP FMALE 98POS 0.039

Deep-Dive with AI

DocumentsDatasheet gs-12-233 Other Related Document +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 7.84
		10	$ 6.01
		25	$ 5.42
		50	$ 5.03
	Tape & Reel (TR)	150	$ 4.47
		300	$ 4.16
		450	$ 4.00
		750	$ 3.80
		1050	$ 3.68
		1500	$ 3.56

Description

General part information

10025026 Series

98 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black

Documents

Technical documentation and resources

Datasheet

gs-12-233 Other Related Document

cardedge productpresentation Other Related Document

Related Document

Specification	10025026-10002CLF	10025026 Series

Card Thickness	0.062 in	0.062 in
Card Thickness	1.57 mm	1.57 mm
Card Type	PCI Express™	PCI Express™
Color	Black	Black
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness	30 Áin	15 - 30 Áin
Contact Finish Thickness	-	Flash
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Cantilever	Cantilever
Features	Locking Ramp, Card Extender	Locking Ramp, Card Extender
Flange Feature	0.079 in	0.079 in
Flange Feature	Straddle Mount Opening, Unthreaded	Straddle Mount Opening, Unthreaded
Flange Feature	2 mm	2 mm
Gender	Female	Female
Material - Insulation	Polyamide (PA), Glass Filled, Nylon	Polyamide (PA), Glass Filled, Nylon
Mounting Type	Board Edge, Straddle Mount	Board Edge, Straddle Mount
Number of Positions	98	36 - 164
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Read Out	Dual	Dual
Termination	Solder	Solder
