10025026-10000TLF

Active

Amphenol ICC (FCI)

CONN PCI EXP FMALE 36POS 0.039

Deep-Dive with AI

Search across all available documentation for this part.

Documentscardedge productpresentation Other Related Document Datasheet +1

10025026-10000TLF

Active

Amphenol ICC (FCI)

CONN PCI EXP FMALE 36POS 0.039

Deep-Dive with AI

Documentscardedge productpresentation Other Related Document Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.64
		10	$ 3.55
		25	$ 3.20
		40	$ 3.03
		80	$ 2.81
		230	$ 2.51
		440	$ 2.35
		945	$ 2.17
		2400	$ 2.02

Description

General part information

10025026 Series

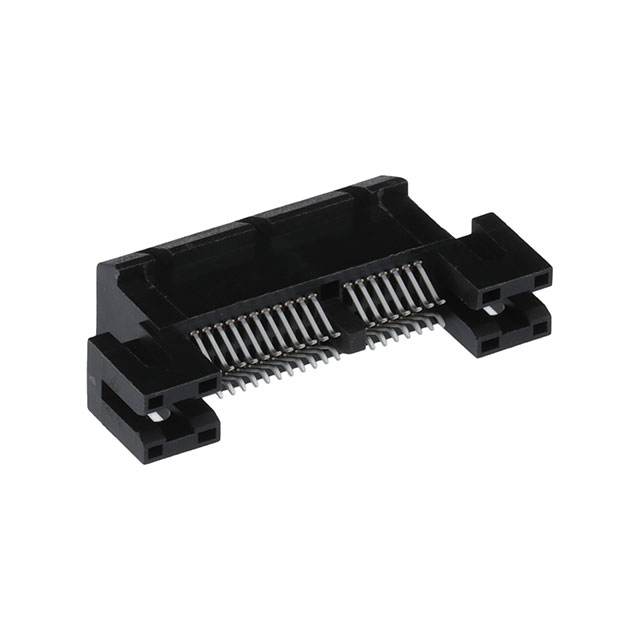

36 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black

Documents

Technical documentation and resources

cardedge productpresentation Other Related Document

Datasheet

gs-12-233 Other Related Document

Related Document

Specification	10025026-10000TLF	10025026 Series

Card Thickness	0.062 in	0.062 in
Card Thickness	1.57 mm	1.57 mm
Card Type	PCI Express™	PCI Express™
Color	Black	Black
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness	30 Áin	15 - 30 Áin
Contact Finish Thickness	-	Flash
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Cantilever	Cantilever
Features	Locking Ramp, Card Extender	Locking Ramp, Card Extender
Flange Feature	0.079 in	0.079 in
Flange Feature	Straddle Mount Opening, Unthreaded	Straddle Mount Opening, Unthreaded
Flange Feature	2 mm	2 mm
Gender	Female	Female
Material - Insulation	Polyamide (PA), Glass Filled, Nylon	Polyamide (PA), Glass Filled, Nylon
Mounting Type	Board Edge, Straddle Mount	Board Edge, Straddle Mount
Number of Positions	36	36 - 164
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Read Out	Dual	Dual
Termination	Solder	Solder

Part

Contact Finish

Contact Type

Contact Material

Card Type

Termination

Gender

Read Out

Color

Mounting Type

Material - Insulation

Flange Feature

Card Thickness

Contact Finish Thickness

Pitch [x]

Number of Positions

Operating Temperature [Max]

Operating Temperature [Min]

Number of Rows

Features

Contact Finish Thickness

Amphenol ICC (FCI)

10025026-10000TLF

Gold

Cantilever

Copper Alloy

PCI Express™

Solder

Female

Dual

Black

Board Edge, Straddle Mount

Glass Filled, Nylon, Polyamide (PA)

0.079 in

Straddle Mount Opening, Unthreaded

2 mm

0.062 in

1.57 mm

0.76 Ám

30 Áin

0.039 in

1 mm

85 °C

-55 °C

Card Extender, Locking Ramp

Amphenol ICC (FCI)

10025026-10203PLF

Gold

Cantilever

Copper Alloy

PCI Express™

Solder

Female

Dual

Black

Board Edge, Straddle Mount

Glass Filled, Nylon, Polyamide (PA)

0.079 in

Straddle Mount Opening, Unthreaded

2 mm

0.062 in

1.57 mm

0.039 in

1 mm

164

85 °C

-55 °C

Card Extender, Locking Ramp

Flash

Amphenol ICC (FCI)

10025026-10001TLF

Gold

Cantilever

Copper Alloy

PCI Express™

Solder

Female

Dual

Black

Board Edge, Straddle Mount

Glass Filled, Nylon, Polyamide (PA)

0.079 in

Straddle Mount Opening, Unthreaded

2 mm

0.062 in

1.57 mm

0.76 Ám

30 Áin

0.039 in

1 mm

85 °C

-55 °C

Card Extender, Locking Ramp

Amphenol ICC (FCI)

10025026-10103TLF

Gold

Cantilever

Copper Alloy

PCI Express™

Solder

Female

Dual

Black

Board Edge, Straddle Mount

Glass Filled, Nylon, Polyamide (PA)

0.079 in

Straddle Mount Opening, Unthreaded

2 mm

0.062 in

1.57 mm

0.38 µm

15 µin

0.039 in

1 mm

164

85 °C

-55 °C

Card Extender, Locking Ramp

Amphenol ICC (FCI)

10025026-10203TLF

Gold

Cantilever

Copper Alloy

PCI Express™

Solder

Female

Dual

Black

Board Edge, Straddle Mount

Glass Filled, Nylon, Polyamide (PA)

0.079 in

Straddle Mount Opening, Unthreaded

2 mm

0.062 in

1.57 mm

0.039 in

1 mm

164

85 °C

-55 °C

Card Extender, Locking Ramp

Flash

Amphenol ICC (FCI)

10025026-30103TLF

Gold

Cantilever

Copper Alloy

PCI Express™

Solder

Female

Dual

Black

Board Edge, Straddle Mount

Glass Filled, Nylon, Polyamide (PA)

0.079 in

Straddle Mount Opening, Unthreaded

2 mm

0.062 in

1.57 mm

0.039 in

1 mm

164

85 °C

-55 °C

Card Extender, Locking Ramp

Flash

Amphenol ICC (FCI)

10025026-10202TLF

Gold

Cantilever

Copper Alloy

PCI Express™

Solder

Female

Dual

Black

Board Edge, Straddle Mount

Glass Filled, Nylon, Polyamide (PA)

0.079 in

Straddle Mount Opening, Unthreaded

2 mm

0.062 in

1.57 mm

0.039 in

1 mm

85 °C

-55 °C

Card Extender, Locking Ramp

Flash

Amphenol ICC (FCI)

10025026-10200TLF

Gold

Cantilever

Copper Alloy

PCI Express™

Solder

Female

Dual

Black

Board Edge, Straddle Mount

Glass Filled, Nylon, Polyamide (PA)

0.079 in

Straddle Mount Opening, Unthreaded

2 mm

0.062 in

1.57 mm

0.039 in

1 mm

85 °C

-55 °C

Card Extender, Locking Ramp

Flash

Amphenol ICC (FCI)

10025026-10003HLF

Gold

Cantilever

Copper Alloy

PCI Express™

Solder

Female

Dual

Black

Board Edge, Straddle Mount

Glass Filled, Nylon, Polyamide (PA)

0.079 in

Straddle Mount Opening, Unthreaded

2 mm

0.062 in

1.57 mm

0.76 Ám

30 Áin

0.039 in

1 mm

164

85 °C

-55 °C

Card Extender, Locking Ramp

Amphenol ICC (FCI)

10025026-10002CLF

Gold

Cantilever

Copper Alloy

PCI Express™

Solder

Female

Dual

Black

Board Edge, Straddle Mount

Glass Filled, Nylon, Polyamide (PA)

0.079 in

Straddle Mount Opening, Unthreaded

2 mm

0.062 in

1.57 mm

0.76 Ám

30 Áin

0.039 in

1 mm

85 °C

-55 °C

Card Extender, Locking Ramp

Part	Contact Finish	Contact Type	Contact Material	Card Type	Termination	Gender	Read Out	Color	Mounting Type	Material - Insulation	Flange Feature	Flange Feature	Flange Feature	Card Thickness	Card Thickness	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Features	Contact Finish Thickness
Amphenol ICC (FCI) 10025026-10000TLF	Gold	Cantilever	Copper Alloy	PCI Express™	Solder	Female	Dual	Black	Board Edge, Straddle Mount	Glass Filled, Nylon, Polyamide (PA)	0.079 in	Straddle Mount Opening, Unthreaded	2 mm	0.062 in	1.57 mm	0.76 Ám	30 Áin	0.039 in	1 mm	36	85 °C	-55 °C	2	Card Extender, Locking Ramp
Amphenol ICC (FCI) 10025026-10203PLF	Gold	Cantilever	Copper Alloy	PCI Express™	Solder	Female	Dual	Black	Board Edge, Straddle Mount	Glass Filled, Nylon, Polyamide (PA)	0.079 in	Straddle Mount Opening, Unthreaded	2 mm	0.062 in	1.57 mm			0.039 in	1 mm	164	85 °C	-55 °C	2	Card Extender, Locking Ramp	Flash
Amphenol ICC (FCI) 10025026-10001TLF	Gold	Cantilever	Copper Alloy	PCI Express™	Solder	Female	Dual	Black	Board Edge, Straddle Mount	Glass Filled, Nylon, Polyamide (PA)	0.079 in	Straddle Mount Opening, Unthreaded	2 mm	0.062 in	1.57 mm	0.76 Ám	30 Áin	0.039 in	1 mm	64	85 °C	-55 °C	2	Card Extender, Locking Ramp
Amphenol ICC (FCI) 10025026-10103TLF	Gold	Cantilever	Copper Alloy	PCI Express™	Solder	Female	Dual	Black	Board Edge, Straddle Mount	Glass Filled, Nylon, Polyamide (PA)	0.079 in	Straddle Mount Opening, Unthreaded	2 mm	0.062 in	1.57 mm	0.38 µm	15 µin	0.039 in	1 mm	164	85 °C	-55 °C	2	Card Extender, Locking Ramp
Amphenol ICC (FCI) 10025026-10203TLF	Gold	Cantilever	Copper Alloy	PCI Express™	Solder	Female	Dual	Black	Board Edge, Straddle Mount	Glass Filled, Nylon, Polyamide (PA)	0.079 in	Straddle Mount Opening, Unthreaded	2 mm	0.062 in	1.57 mm			0.039 in	1 mm	164	85 °C	-55 °C	2	Card Extender, Locking Ramp	Flash
Amphenol ICC (FCI) 10025026-30103TLF	Gold	Cantilever	Copper Alloy	PCI Express™	Solder	Female	Dual	Black	Board Edge, Straddle Mount	Glass Filled, Nylon, Polyamide (PA)	0.079 in	Straddle Mount Opening, Unthreaded	2 mm	0.062 in	1.57 mm			0.039 in	1 mm	164	85 °C	-55 °C	2	Card Extender, Locking Ramp	Flash
Amphenol ICC (FCI) 10025026-10202TLF	Gold	Cantilever	Copper Alloy	PCI Express™	Solder	Female	Dual	Black	Board Edge, Straddle Mount	Glass Filled, Nylon, Polyamide (PA)	0.079 in	Straddle Mount Opening, Unthreaded	2 mm	0.062 in	1.57 mm			0.039 in	1 mm	98	85 °C	-55 °C	2	Card Extender, Locking Ramp	Flash
Amphenol ICC (FCI) 10025026-10200TLF	Gold	Cantilever	Copper Alloy	PCI Express™	Solder	Female	Dual	Black	Board Edge, Straddle Mount	Glass Filled, Nylon, Polyamide (PA)	0.079 in	Straddle Mount Opening, Unthreaded	2 mm	0.062 in	1.57 mm			0.039 in	1 mm	36	85 °C	-55 °C	2	Card Extender, Locking Ramp	Flash
Amphenol ICC (FCI) 10025026-10003HLF	Gold	Cantilever	Copper Alloy	PCI Express™	Solder	Female	Dual	Black	Board Edge, Straddle Mount	Glass Filled, Nylon, Polyamide (PA)	0.079 in	Straddle Mount Opening, Unthreaded	2 mm	0.062 in	1.57 mm	0.76 Ám	30 Áin	0.039 in	1 mm	164	85 °C	-55 °C	2	Card Extender, Locking Ramp
Amphenol ICC (FCI) 10025026-10002CLF	Gold	Cantilever	Copper Alloy	PCI Express™	Solder	Female	Dual	Black	Board Edge, Straddle Mount	Glass Filled, Nylon, Polyamide (PA)	0.079 in	Straddle Mount Opening, Unthreaded	2 mm	0.062 in	1.57 mm	0.76 Ám	30 Áin	0.039 in	1 mm	98	85 °C	-55 °C	2	Card Extender, Locking Ramp
