BMD-340-EVAL

Active

u-blox

EVAL BOARD FOR BMD-340 NRF52840

Search across all available documentation for this part.

Active

u-blox

EVAL BOARD FOR BMD-340 NRF52840

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMD-340-EVAL	BMD-340 Series

Antenna Type	-	Integrated, Trace
Current - Receiving	-	11.7 mA
Current - Receiving	-	5.4 mA
Current - Transmitting	-	26.7 mA
Current - Transmitting	-	5.3 mA
Data Rate	-	2 Mbps
For Use With/Related Products	nRF52840, BMD-340	nRF52840, BMD-340
Frequency	2.4 GHz	2.4 GHz
Frequency	-	2.5 GHz
Frequency	-	2.36 GHz
Memory Size	-	1 - 256 MB
Modulation	-	GFSK
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	Module
Power - Output	-	8 dBm
Protocol	-	Zigbee®, Thread, Bluetooth v5.0
RF Family/Standard	-	Bluetooth, 802.15.4
Sensitivity	-	-103 dBm
Serial Interfaces	-	SPI, I2C, I2S, UART
Supplied Contents	Cable(s), Board(s)	Cable(s), Board(s)
Type	Bluetooth® 5.x (BLE), Transceiver, 802.15.4 (Thread, Zigbee®)	Bluetooth® 5.x (BLE), Transceiver, 802.15.4 (Thread, Zigbee®)
Utilized IC / Part	-	nRF52840
Voltage - Supply	-	3.6 V
Voltage - Supply	-	1.7 V

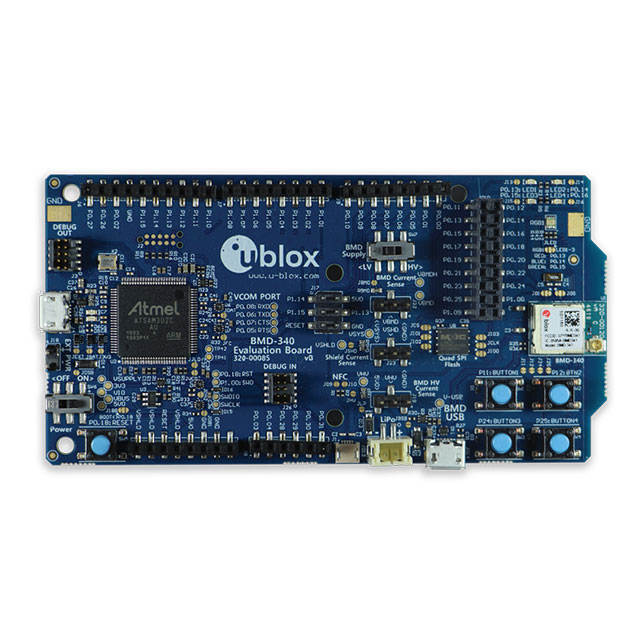

EVAL BOARD FOR BMD-340 NRF52840

Part	For Use With/Related Products	Frequency	Type	Supplied Contents	Protocol	RF Family/Standard	Current - Transmitting [Max]	Current - Transmitting [Min]	Mounting Type	Antenna Type	Sensitivity	Modulation	Current - Receiving [Max]	Current - Receiving [Min]	Power - Output	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Memory Size	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate	Serial Interfaces	Frequency [Max]	Frequency [Min]	Utilized IC / Part
u-blox BMD-340-EVAL	BMD-340, nRF52840	2.4 GHz	802.15.4 (Thread, Zigbee®), Bluetooth® 5.x (BLE), Transceiver	Board(s), Cable(s)
u-blox BMD-340-A-R					Bluetooth v5.0, Thread, Zigbee®	802.15.4, Bluetooth	26.7 mA	5.3 mA	Surface Mount	Integrated, Trace	-103 dBm	GFSK	11.7 mA	5.4 mA	8 dBm	Module	85 °C	-40 °C	1 MB, 256 kB	3.6 V	1.7 V	2 Mbps	I2C, I2S, SPI, UART	2.5 GHz	2.36 GHz	nRF52840

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 99.00

General part information

BMD-34 BMD-340, nRF52840 Transceiver; 802.15.4 (Thread, Zigbee®), Bluetooth® 5.x (BLE) 2.4GHz Evaluation Board
