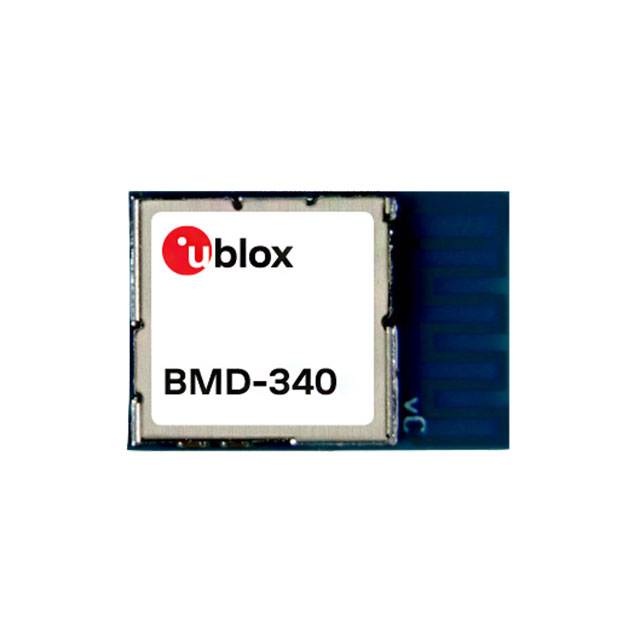

BMD-340-A-R

Active

u-blox

RF TXRX MODULE BT TRACE ANT SMD

Search across all available documentation for this part.

Active

u-blox

RF TXRX MODULE BT TRACE ANT SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

802.15.4, Bluetooth Bluetooth v5.0, Thread, Zigbee® Transceiver Module 2.36GHz ~ 2.5GHz Integrated, Trace Surface Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	BMD-340-A-R	BMD-340 Series

Antenna Type	Integrated, Trace	Integrated, Trace
Current - Receiving [Max]	11.7 mA	11.7 mA
Current - Receiving [Min]	5.4 mA	5.4 mA
Current - Transmitting [Max]	26.7 mA	26.7 mA
Current - Transmitting [Min]	5.3 mA	5.3 mA
Data Rate	2 Mbps	2 Mbps
For Use With/Related Products	-	nRF52840, BMD-340
Frequency	-	2.4 GHz
Frequency [Max]	2.5 GHz	2.5 GHz
Frequency [Min]	2.36 GHz	2.36 GHz
Memory Size	1 MB, 256 kB	1 - 256 MB
Modulation	GFSK	GFSK
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Power - Output	8 dBm	8 dBm
Protocol	Zigbee®, Thread, Bluetooth v5.0	Zigbee®, Thread, Bluetooth v5.0
RF Family/Standard	Bluetooth, 802.15.4	Bluetooth, 802.15.4
Sensitivity	-103 dBm	-103 dBm
Serial Interfaces	SPI, I2C, I2S, UART	SPI, I2C, I2S, UART
Supplied Contents	-	Cable(s), Board(s)
Type	-	Bluetooth® 5.x (BLE), Transceiver, 802.15.4 (Thread, Zigbee®)
Utilized IC / Part	nRF52840	nRF52840
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.7 V	1.7 V

EVAL BOARD FOR BMD-340 NRF52840

Part	For Use With/Related Products	Frequency	Type	Supplied Contents	Protocol	RF Family/Standard	Current - Transmitting [Max]	Current - Transmitting [Min]	Mounting Type	Antenna Type	Sensitivity	Modulation	Current - Receiving [Max]	Current - Receiving [Min]	Power - Output	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Memory Size	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate	Serial Interfaces	Frequency [Max]	Frequency [Min]	Utilized IC / Part
u-blox BMD-340-EVAL	BMD-340, nRF52840	2.4 GHz	802.15.4 (Thread, Zigbee®), Bluetooth® 5.x (BLE), Transceiver	Board(s), Cable(s)
u-blox BMD-340-A-R					Bluetooth v5.0, Thread, Zigbee®	802.15.4, Bluetooth	26.7 mA	5.3 mA	Surface Mount	Integrated, Trace	-103 dBm	GFSK	11.7 mA	5.4 mA	8 dBm	Module	85 °C	-40 °C	1 MB, 256 kB	3.6 V	1.7 V	2 Mbps	I2C, I2S, SPI, UART	2.5 GHz	2.36 GHz	nRF52840
