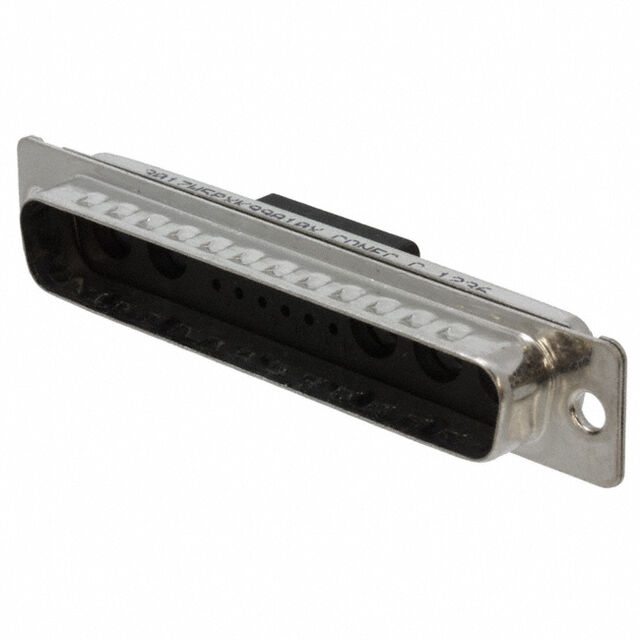

3017W5PXK99A10X

Active

Amphenol CONEC

CONN D-SUB HOUSING PLUG 17POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3017W5PXK99A10X

Active

Amphenol CONEC

CONN D-SUB HOUSING PLUG 17POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3017W5PXK99A10X

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug for Male Contacts
Contact Type	Power, Signal and Coax
Dielectric Material	Polybutylene Terephthalate (PBT), Polyester
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions [custom]	17
Number of Positions [custom]	5
Number of Positions [custom]	12
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Finish Thickness	320 µin
Shell Finish Thickness	8.13 µm
Shell Size, Connector Layout	4 (DC, C), 17W5

3017W5P Series

Part	Connector Type	Features	Dielectric Material	Color	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Material Flammability Rating	Number of Rows	Mounting Type	Current Rating (Amps)	Contact Finish	Contact Material	Connector Style	Flange Feature	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout	Voltage Rating	Contact Finish Thickness	Contact Type	Shell Finish Thickness	Shell Finish Thickness	Note	Number of Positions [custom]	Termination
Amphenol CONEC 3017W5PAR71AA0X	Male Pins Plug
Amphenol CONEC 3017W5PCM99A10X	Male Pins Plug	Grounding Indents	Polybutylene Terephthalate (PBT) Glass Filled	Green	17	5	12	UL94 V-0	2	Free Hanging (In-Line)	5 A	Gold	Copper Alloy	Combo D-Sub	Housing/Shell (Unthreaded)	20 AWG	-55 °C	125 °C	0.76 Ám	30 Áin	17W5 4 (DC C)
Amphenol CONEC 3017W5PAR71E20X	Male Pins Plug
Amphenol CONEC 3017W5PAM99A10X	Male Pins Plug	Grounding Indents	Polybutylene Terephthalate (PBT) Glass Filled	Green	17	5	12	UL94 V-0	2	Free Hanging (In-Line)	7.5 A	Gold	Copper Alloy	Combo D-Sub	Housing/Shell (Unthreaded)	20 AWG	-55 °C	125 °C			17W5 4 (DC C)	250 VDC	Flash
Amphenol CONEC 3017W5PXK99A10X	Plug for Male Contacts	Grounding Indents	Polybutylene Terephthalate (PBT) Polyester	Black	17	5	12		2	Free Hanging (In-Line)				Combo D-Sub	Housing/Shell (Unthreaded)		-55 °C	125 °C			17W5 4 (DC C)			Power Signal and Coax	320 µin	8.13 µm	Contacts Not Included
Amphenol CONEC 3017W5PCT56N40X	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets	Polybutylene Terephthalate (PBT) Glass Filled	Green			15		2	Through Hole Right Angle		Gold		Combo D-Sub	Housing/Shell (4-40)		-55 °C	125 °C	0.76 Ám	30 Áin	17W2 3 (DB B)			Signal and Power				2	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

3017W5P Series

Plug for Male Contacts Housing D-Sub, Combo Connector 17 (12 + 5 Coax or Power) Position

Documents

Technical documentation and resources
