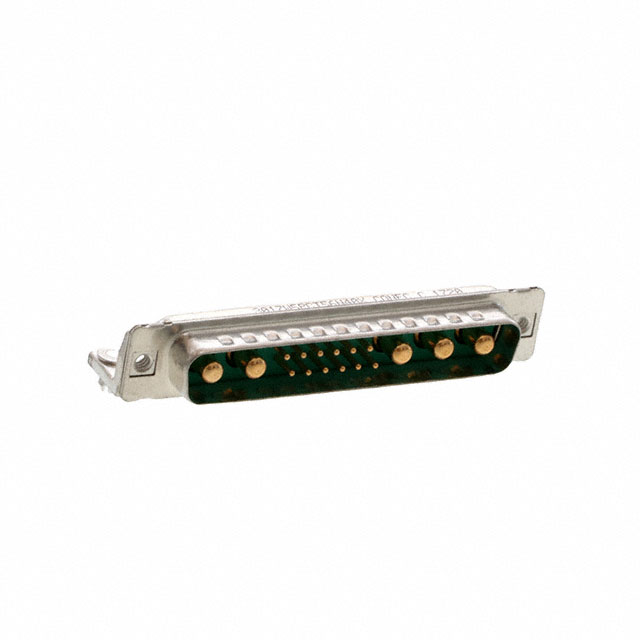

3017W5PCT56N40X

Active

Amphenol CONEC

CONN D-SUB PLUG 17POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

3017W5PCT56N40X

Active

Amphenol CONEC

CONN D-SUB PLUG 17POS R/A SLDR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3017W5PCT56N40X

Color	Green
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Signal and Power
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Mounting Brackets, Board Lock
Flange Feature	Housing/Shell (4-40)
Mounting Type	Through Hole, Right Angle
Number of Positions [custom]	15
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	17W2, 3 (DB, B)
Termination	Solder

3017W5P Series

Part	Connector Type	Features	Dielectric Material	Color	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Material Flammability Rating	Number of Rows	Mounting Type	Current Rating (Amps)	Contact Finish	Contact Material	Connector Style	Flange Feature	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout	Voltage Rating	Contact Finish Thickness	Contact Type	Shell Finish Thickness	Shell Finish Thickness	Note	Number of Positions [custom]	Termination
Amphenol CONEC 3017W5PAR71AA0X	Male Pins Plug
Amphenol CONEC 3017W5PCM99A10X	Male Pins Plug	Grounding Indents	Polybutylene Terephthalate (PBT) Glass Filled	Green	17	5	12	UL94 V-0	2	Free Hanging (In-Line)	5 A	Gold	Copper Alloy	Combo D-Sub	Housing/Shell (Unthreaded)	20 AWG	-55 °C	125 °C	0.76 Ám	30 Áin	17W5 4 (DC C)
Amphenol CONEC 3017W5PAR71E20X	Male Pins Plug
Amphenol CONEC 3017W5PAM99A10X	Male Pins Plug	Grounding Indents	Polybutylene Terephthalate (PBT) Glass Filled	Green	17	5	12	UL94 V-0	2	Free Hanging (In-Line)	7.5 A	Gold	Copper Alloy	Combo D-Sub	Housing/Shell (Unthreaded)	20 AWG	-55 °C	125 °C			17W5 4 (DC C)	250 VDC	Flash
Amphenol CONEC 3017W5PXK99A10X	Plug for Male Contacts	Grounding Indents	Polybutylene Terephthalate (PBT) Polyester	Black	17	5	12		2	Free Hanging (In-Line)				Combo D-Sub	Housing/Shell (Unthreaded)		-55 °C	125 °C			17W5 4 (DC C)			Power Signal and Coax	320 µin	8.13 µm	Contacts Not Included
Amphenol CONEC 3017W5PCT56N40X	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets	Polybutylene Terephthalate (PBT) Glass Filled	Green			15		2	Through Hole Right Angle		Gold		Combo D-Sub	Housing/Shell (4-40)		-55 °C	125 °C	0.76 Ám	30 Áin	17W2 3 (DB B)			Signal and Power				2	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 29.80

Description

General part information

3017W5P Series

17 (15 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector

Documents

Technical documentation and resources

No documents available
