P0581

Active

Terasic Inc.

TERASIC SOC SYSTEM ON MODULE EVA

Search across all available documentation for this part.

Active

Terasic Inc.

TERASIC SOC SYSTEM ON MODULE EVA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P0581	5CSEBA6 Series

Contents	Power Supply, Cable(s), Accessories, Board(s)	Board(s), Power Supply, Cable(s), Accessories
For Use With/Related Products	5CSEBA6	5CSEBA6
Interconnect System	Raspberry Pi HAT (26 pin)	Raspberry Pi HAT (26 pin), Arduino R3 Shield
Platform	Cyclone V SE SoC TSoM	Cyclone V SE SoC TSoM, Cyclone V SE SoC DE10-Nano, Cyclone V SE SoC DE10-Nano Cloud Connectivity WiFi, BT, Cyclone V SE SoC, DE10-Nano, WiFi, Cloud Connectivity
Suggested Programming Environment	Quartus II	Quartus II
Type	FPGA + MCU/MPU SoC	FPGA + MCU/MPU SoC
Utilized IC / Part	5CSEBA6	5CSEBA6

TSOM MODULE

Part	Platform	Contents	Utilized IC / Part	Type	For Use With/Related Products	Interconnect System	Suggested Programming Environment
Terasic Inc. P0553	Cyclone V SE SoC TSoM	Board(s)	5CSEBA6	FPGA + MCU/MPU SoC	5CSEBA6
Terasic Inc. P0581	Cyclone V SE SoC TSoM	Accessories, Board(s), Cable(s), Power Supply	5CSEBA6	FPGA + MCU/MPU SoC	5CSEBA6	Raspberry Pi HAT (26 pin)	Quartus II
Terasic Inc. P0496	Cyclone V SE SoC DE10-Nano	Accessories, Board(s), Cable(s), Power Supply	5CSEBA6	FPGA + MCU/MPU SoC	5CSEBA6	Arduino R3 Shield	Quartus II
Terasic Inc. P0700	Cyclone V SE SoC DE10-Nano Cloud Connectivity WiFi	Accessories, Board(s), Cable(s), Power Supply	5CSEBA6	FPGA + MCU/MPU SoC		Arduino R3 Shield	Quartus II
Terasic Inc. P0685	BT, Cloud Connectivity, Cyclone V SE SoC, DE10-Nano, WiFi	Accessories, Board(s), Cable(s), Power Supply	5CSEBA6	FPGA + MCU/MPU SoC	5CSEBA6	Arduino R3 Shield	Quartus II
Terasic Inc. P0737	BT, Cloud Connectivity, Cyclone V SE SoC, DE10-Nano, WiFi	Accessories, Board(s), Cable(s), Power Supply	5CSEBA6	FPGA + MCU/MPU SoC	5CSEBA6	Arduino R3 Shield	Quartus II

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 507.96

General part information

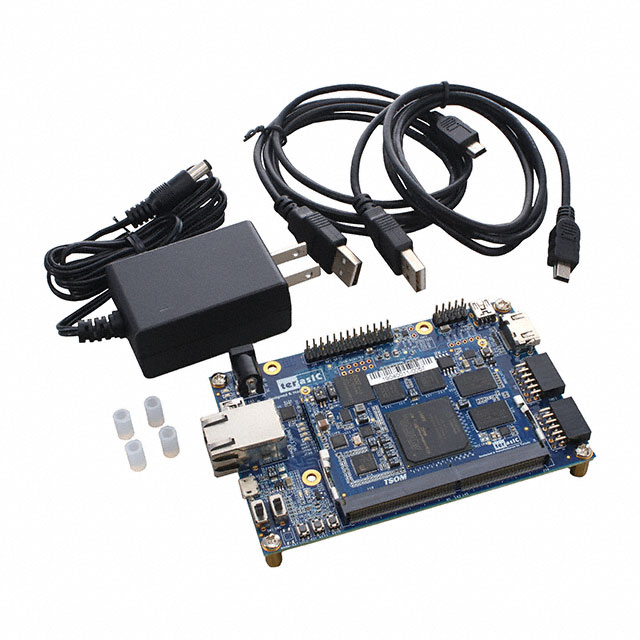

Cyclone V SE SoC TSoM 5CSEBA6 Cyclone® V SE FPGA + MCU/MPU SoC Evaluation Board
