P0685

Obsolete

Terasic Inc.

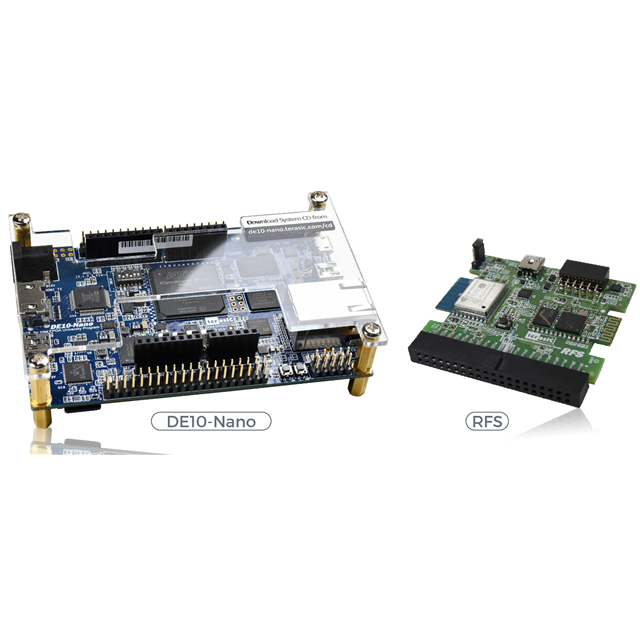

DE10-NANO FPGA CLOUD CONN KIT

Search across all available documentation for this part.

Obsolete

Terasic Inc.

DE10-NANO FPGA CLOUD CONN KIT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cyclone V SE SoC DE10-Nano Cloud Connectivity WiFi BT 5CSEBA6 Cyclone® V SE FPGA + MCU/MPU SoC Evaluation Board

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	P0685	5CSEBA6 Series

Contents	Power Supply, Cable(s), Accessories, Board(s)	Board(s), Power Supply, Cable(s), Accessories
For Use With/Related Products	5CSEBA6	5CSEBA6
Interconnect System	Arduino R3 Shield	Raspberry Pi HAT (26 pin), Arduino R3 Shield
Platform	BT, Cyclone V SE SoC, DE10-Nano, WiFi, Cloud Connectivity	Cyclone V SE SoC TSoM, Cyclone V SE SoC DE10-Nano, Cyclone V SE SoC DE10-Nano Cloud Connectivity WiFi, BT, Cyclone V SE SoC, DE10-Nano, WiFi, Cloud Connectivity
Suggested Programming Environment	Quartus II	Quartus II
Type	FPGA + MCU/MPU SoC	FPGA + MCU/MPU SoC
Utilized IC / Part	5CSEBA6	5CSEBA6

TSOM MODULE

Part	Platform	Contents	Utilized IC / Part	Type	For Use With/Related Products	Interconnect System	Suggested Programming Environment
Terasic Inc. P0553	Cyclone V SE SoC TSoM	Board(s)	5CSEBA6	FPGA + MCU/MPU SoC	5CSEBA6
Terasic Inc. P0581	Cyclone V SE SoC TSoM	Accessories, Board(s), Cable(s), Power Supply	5CSEBA6	FPGA + MCU/MPU SoC	5CSEBA6	Raspberry Pi HAT (26 pin)	Quartus II
Terasic Inc. P0496	Cyclone V SE SoC DE10-Nano	Accessories, Board(s), Cable(s), Power Supply	5CSEBA6	FPGA + MCU/MPU SoC	5CSEBA6	Arduino R3 Shield	Quartus II
Terasic Inc. P0700	Cyclone V SE SoC DE10-Nano Cloud Connectivity WiFi	Accessories, Board(s), Cable(s), Power Supply	5CSEBA6	FPGA + MCU/MPU SoC		Arduino R3 Shield	Quartus II
Terasic Inc. P0685	BT, Cloud Connectivity, Cyclone V SE SoC, DE10-Nano, WiFi	Accessories, Board(s), Cable(s), Power Supply	5CSEBA6	FPGA + MCU/MPU SoC	5CSEBA6	Arduino R3 Shield	Quartus II
Terasic Inc. P0737	BT, Cloud Connectivity, Cyclone V SE SoC, DE10-Nano, WiFi	Accessories, Board(s), Cable(s), Power Supply	5CSEBA6	FPGA + MCU/MPU SoC	5CSEBA6	Arduino R3 Shield	Quartus II
