R161051000W

Active

Radiall USA, Inc.

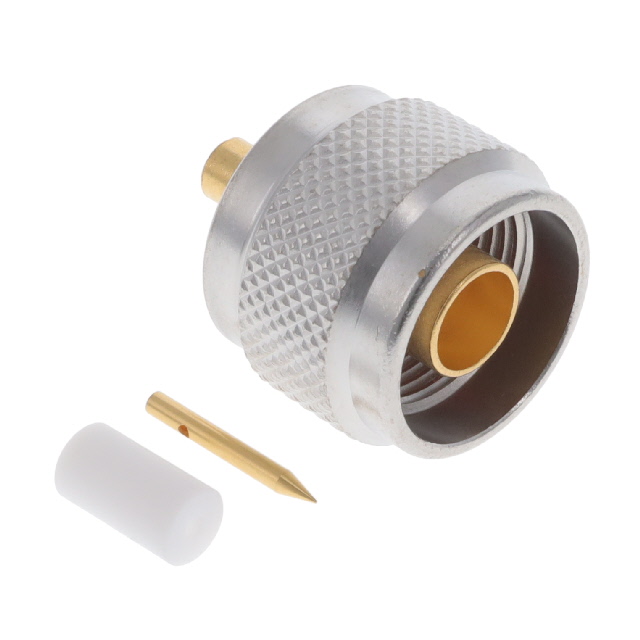

RF N CONNECTOR, MALE, CABLE MOUNT, SOLDER TERMINAL, PLUG

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF N CONNECTOR, MALE, CABLE MOUNT, SOLDER TERMINAL, PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	R161051000W

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	1400 V

Part	Mounting Type	Connector Style	Housing Color	Dielectric Material	Center Contact Material	Frequency - Max [Max]	Ingress Protection	Insertion Loss	Body Material	Impedance	Body Finish	Shield Termination	Voltage Rating	Number of Ports	Contact Termination	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Center Contact Plating	Cable Group	Cable Group
Radiall USA, Inc. R161052000	Free Hanging (In-Line)	N Type	Silver	Polytetrafluoroethylene (PTFE)	Brass	11 GHz	IP67 - Dust Tight Waterproof	0.15 dB	Brass	50 Ohms	White Bronze	Clamp	335 V	1	Solder	500	105 ░C	-55 °C	Male Pin Plug	Gold
Radiall USA, Inc. R161054000	Free Hanging (In-Line)	N Type	Gold	Polytetrafluoroethylene (PTFE)	Brass	11 GHz		0.15 dB	Brass	50 Ohms	Gold	Solder	1400 V	1	Solder	500	105 ░C	-55 °C	Male Pin Plug	Gold	0.25 in	RG-401
Radiall USA, Inc. R161050300	Free Hanging (In-Line)	N Type	Gold	Polytetrafluoroethylene (PTFE)	Brass	11 GHz		0.15 dB	Brass	50 Ohms	Gold	Solder	335 V	1	Solder	500	105 ░C	-55 °C	Male Pin Plug	Gold		RG-405 (.085" Semi Rigid)
Radiall USA, Inc. R161051000W	Free Hanging (In-Line)	N Type	Gold	Polytetrafluoroethylene (PTFE)	Brass	11 GHz		0.15 dB	Brass	50 Ohms	Gold	Solder	1400 V	1	Solder	500	105 ░C	-55 °C	Male Pin Plug	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
