R161054000
ActiveRadiall USA, Inc.

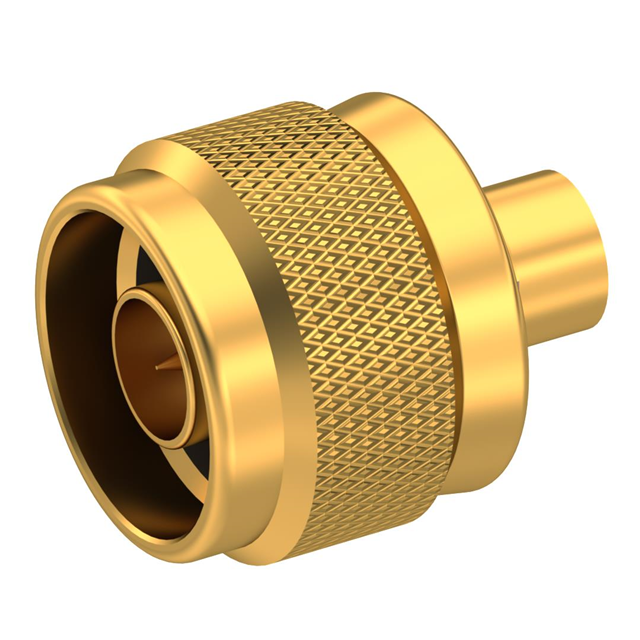

N / STRAIGHT PLUG SOLDER TYPE CA
Deep-Dive with AI
Search across all available documentation for this part.
R161054000
ActiveRadiall USA, Inc.
N / STRAIGHT PLUG SOLDER TYPE CA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R161054000 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | 0.25 in |
| Cable Group | RG-401 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 11 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Insertion Loss | 0.15 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 1400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 16.71 | |
| 10 | $ 14.48 | |||
| 25 | $ 13.73 | |||
| 50 | $ 13.53 | |||
| 100 | $ 11.94 | |||
| 250 | $ 11.14 | |||
| 500 | $ 10.90 | |||
Description
General part information
R16105 Series
N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
