ISOLATED DIN RAIL MOUNT DC/DC CONVERTER, STEP DOWN, ITE, 3:1, 2.5 W, 1 OUTPUT, 5 V, 500 MA

Search across all available documentation for this part.

Active

WAGO Corporation

ISOLATED DIN RAIL MOUNT DC/DC CONVERTER, STEP DOWN, ITE, 3:1, 2.5 W, 1 OUTPUT, 5 V, 500 MA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

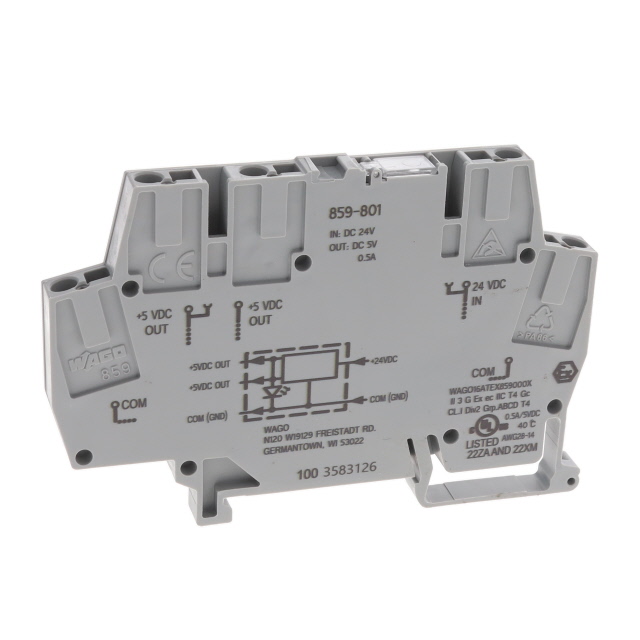

The 859-801 is a 1-output 2.5W Non-isolated DC to DC Converter with DIN 35 rail mount and output short circuit protection.

Specification	859-801	859 Series

Applications	Industrial	Industrial
Approval Agency	UL, CE	UL, CE
Coil Current	-	10 mA
Coil Resistance	-	2.4 kOhms
Coil Type	-	Non Latching
Coil Voltage	-	24 VDC
Color	-	Gray
Contact Form	-	SPDT (1 Form C)
Contact Material	-	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	-	5 A
Current - Output (Max) [Max]	500 mA	500 mA
DC Voltage - Input (Max) [Max]	30 V	30 V
DC Voltage - Input (Min) [Min]	10 V	10 - 15 V
Efficiency	70 %	70 - 85 %
Features	Adjustable Output	Adjustable Output, Lighted Indicator
For Use With/Related Products	-	Terminal Blocks
Input Type	DC	DC
Load - Max Switching	-	1250 VA
Mounting Type	-	DIN Rail
Must Operate Voltage	-	20.4 VDC
Number of Outputs	1	1
Number of Positions	-	2 - 10
Operate Time	-	15 ms
Operating Temperature [Max]	40 °C	40 - 55 °C
Operating Temperature [Min]	0 °C	-40 - 0 °C
Relay Type	-	General Purpose
Release Time	-	25 ms
Standard Number	508	508
Style	-	Flat Pins
Switching Voltage	-	250 VAC
Termination Style	-	Spring Terminal
Type	-	Terminal Block, Cross Connection, End Plate
Voltage - Output 1	5 V	5 - 10 V
