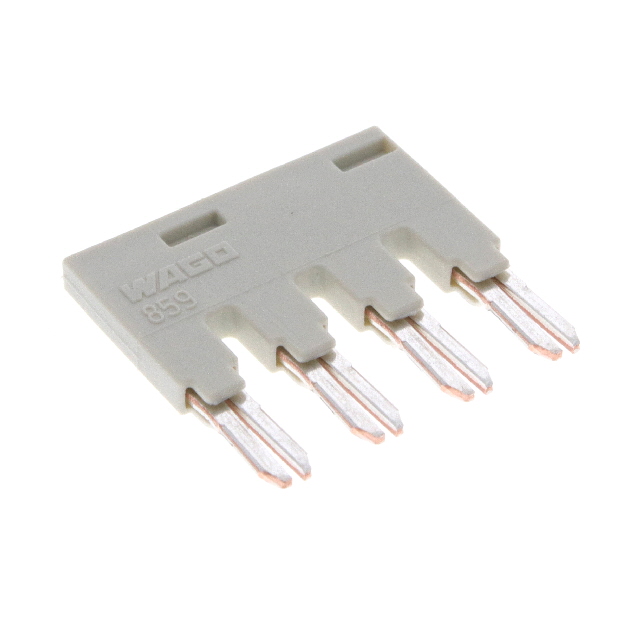

859-404

Active

WAGO Corporation

ACCESSORY, LIGHT GRAY, WAGO RAIL MOUNT TERMINAL BLOCKS, JUPER BAR

Search across all available documentation for this part.

Active

WAGO Corporation

ACCESSORY, LIGHT GRAY, WAGO RAIL MOUNT TERMINAL BLOCKS, JUPER BAR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Terminal Block, Cross Connection Jumper Flat Pins

Technical documentation and resources

Specification	859-404	859 Series

Applications	-	Industrial
Approval Agency	-	UL, CE
Coil Current	-	10 mA
Coil Resistance	-	2.4 kOhms
Coil Type	-	Non Latching
Coil Voltage	-	24 VDC
Color	Gray	Gray
Contact Form	-	SPDT (1 Form C)
Contact Material	-	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	-	5 A
Current - Output (Max)	-	500 mA
DC Voltage - Input (Max)	-	30 V
DC Voltage - Input (Min)	-	10 - 15 V
Efficiency	-	70 - 85 %
Features	-	Adjustable Output, Lighted Indicator
For Use With/Related Products	Terminal Blocks	Terminal Blocks
Input Type	-	DC
Load - Max Switching	-	1250 VA
Mounting Type	-	DIN Rail
Must Operate Voltage	-	20.4 VDC
Number of Outputs	-	1
Number of Positions	4	2 - 10
Operate Time	-	15 ms
Operating Temperature	-	40 - 55 °C
Operating Temperature	-	-40 - 0 °C
Relay Type	-	General Purpose
Release Time	-	25 ms
Standard Number	-	508
Style	Flat Pins	Flat Pins
Switching Voltage	-	250 VAC
Termination Style	-	Spring Terminal
Type	Terminal Block, Cross Connection	Terminal Block, Cross Connection, End Plate
Voltage - Output 1	-	5 - 10 V

Part	Style	Color	Type	For Use With/Related Products	Number of Positions	Efficiency	Number of Outputs	Applications	Standard Number	Current - Output (Max) [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]	Approval Agency	Input Type	Voltage - Output 1	Release Time	Must Operate Voltage	Switching Voltage	Load - Max Switching [Max]	Mounting Type	Coil Resistance	Operate Time	Contact Rating (Current)	Coil Type	Contact Form	Relay Type	Coil Voltage	Termination Style	Coil Current	Contact Material
WAGO Corporation 859-404	Flat Pins	Gray	Terminal Block, Cross Connection	Terminal Blocks	4
WAGO Corporation 859-801						70 %	1	Industrial	508	500 mA	Adjustable Output	40 °C	0 °C	30 V	10 V	CE, UL	DC	5 V
WAGO Corporation 859-525		Gray	End Plate	Terminal Blocks
WAGO Corporation 859-410	Flat Pins	Gray	Terminal Block, Cross Connection	Terminal Blocks	10
WAGO Corporation 859-402	Flat Pins	Gray	Terminal Block, Cross Connection	Terminal Blocks	2
WAGO Corporation 859-406	Flat Pins	Gray	Terminal Block, Cross Connection	Terminal Blocks	6
WAGO Corporation 859-403	Flat Pins	Gray	Terminal Block, Cross Connection	Terminal Blocks
WAGO Corporation 859-408	Flat Pins	Gray	Terminal Block, Cross Connection	Terminal Blocks	8
WAGO Corporation 859-304											Lighted Indicator	50 °C	-40 °C						25 ms	20.4 VDC	250 VAC	1250 VA	DIN Rail	2.4 kOhms	15 ms	5 A	Non Latching	SPDT (1 Form C)	General Purpose	24 VDC	Spring Terminal	10 mA	Silver Tin Oxide (AgSnO)
WAGO Corporation 859-802						85 %	1	Industrial	508	500 mA	Adjustable Output	55 °C	-25 °C	30 V	15 V	CE, UL	DC	10 V
