859-802

Active

WAGO Corporation

ISOLATED DIN RAIL MOUNT DC/DC CONVERTER, STEP DOWN, ITE, 2:1, 5 W, 1 OUTPUT, 10 V, 500 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

859-802

Active

WAGO Corporation

ISOLATED DIN RAIL MOUNT DC/DC CONVERTER, STEP DOWN, ITE, 2:1, 5 W, 1 OUTPUT, 10 V, 500 MA

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 76.47
		5	$ 75.87
		10	$ 75.27
		25	$ 72.88
		50	$ 69.30
		100	$ 64.52
Newark	Each	1	$ 96.96
		5	$ 92.08
		10	$ 84.78
		25	$ 78.44
		50	$ 72.60

Description

General part information

859 Series

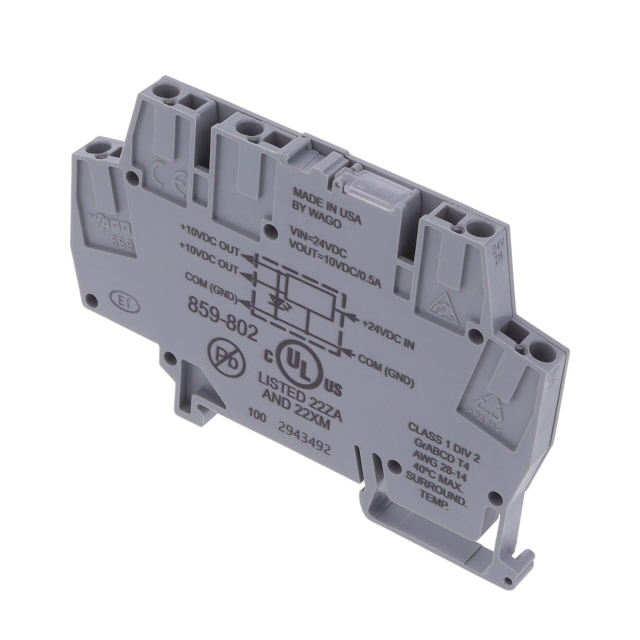

The 859-802 is a 1-output DIN rail mount non-isolated DC to DC Converter with input polarity protection. When industrial controls that typically require 24VDC are used in conjunction with industrial sensors operating at 10VDC, often interface devices are required. This module can cost effectively produce 10VDC at up to 500mA from a 24V source.

Specification	859-802	859 Series

Applications	Industrial	Industrial
Approval Agency	UL, CE	UL, CE
Coil Current	-	10 mA
Coil Resistance	-	2.4 kOhms
Coil Type	-	Non Latching
Coil Voltage	-	24 VDC
Color	-	Gray
Contact Form	-	SPDT (1 Form C)
Contact Material	-	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	-	5 A
Current - Output (Max) [Max]	500 mA	500 mA
DC Voltage - Input (Max) [Max]	30 V	30 V
DC Voltage - Input (Min) [Min]	15 V	10 - 15 V
Efficiency	85 %	70 - 85 %
Features	Adjustable Output	Adjustable Output, Lighted Indicator
For Use With/Related Products	-	Terminal Blocks
Input Type	DC	DC
Load - Max Switching	-	1250 VA
Mounting Type	-	DIN Rail
Must Operate Voltage	-	20.4 VDC
Number of Outputs	1	1
Number of Positions	-	2 - 10
Operate Time	-	15 ms
Operating Temperature [Max]	55 °C	40 - 55 °C
Operating Temperature [Min]	-25 °C	-40 - 0 °C
Relay Type	-	General Purpose
Release Time	-	25 ms
Standard Number	508	508
Style	-	Flat Pins
Switching Voltage	-	250 VAC
Termination Style	-	Spring Terminal
Type	-	Terminal Block, Cross Connection, End Plate
Voltage - Output 1	10 V	5 - 10 V

Part	Style	Color	Type	For Use With/Related Products	Number of Positions	Efficiency	Number of Outputs	Applications	Standard Number	Current - Output (Max) [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]	Approval Agency	Input Type	Voltage - Output 1	Release Time	Must Operate Voltage	Switching Voltage	Load - Max Switching [Max]	Mounting Type	Coil Resistance	Operate Time	Contact Rating (Current)	Coil Type	Contact Form	Relay Type	Coil Voltage	Termination Style	Coil Current	Contact Material
WAGO Corporation 859-404	Flat Pins	Gray	Terminal Block, Cross Connection	Terminal Blocks	4
WAGO Corporation 859-801						70 %	1	Industrial	508	500 mA	Adjustable Output	40 °C	0 °C	30 V	10 V	CE, UL	DC	5 V
WAGO Corporation 859-525		Gray	End Plate	Terminal Blocks
WAGO Corporation 859-410	Flat Pins	Gray	Terminal Block, Cross Connection	Terminal Blocks	10
WAGO Corporation 859-402	Flat Pins	Gray	Terminal Block, Cross Connection	Terminal Blocks	2
WAGO Corporation 859-406	Flat Pins	Gray	Terminal Block, Cross Connection	Terminal Blocks	6
WAGO Corporation 859-403	Flat Pins	Gray	Terminal Block, Cross Connection	Terminal Blocks
WAGO Corporation 859-408	Flat Pins	Gray	Terminal Block, Cross Connection	Terminal Blocks	8
WAGO Corporation 859-304											Lighted Indicator	50 °C	-40 °C						25 ms	20.4 VDC	250 VAC	1250 VA	DIN Rail	2.4 kOhms	15 ms	5 A	Non Latching	SPDT (1 Form C)	General Purpose	24 VDC	Spring Terminal	10 mA	Silver Tin Oxide (AgSnO)
WAGO Corporation 859-802						85 %	1	Industrial	508	500 mA	Adjustable Output	55 °C	-25 °C	30 V	15 V	CE, UL	DC	10 V

859-802

Deep-Dive with AI

859-802

Deep-Dive with AI

Pricing

Description

859 Series

Documents

Datasheet

Technical Data Sheet EN

Technical Specifications

859 Series
