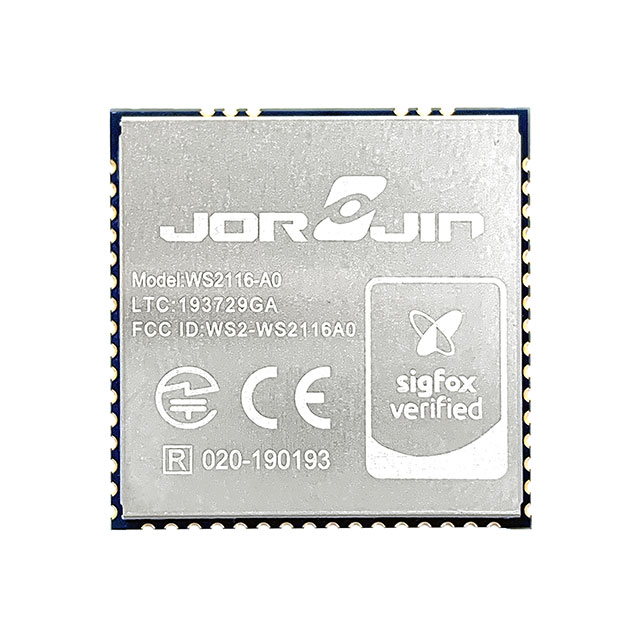

WS2116-A0

Active

Jorjin Technologies Inc.

RF TXRX MOD BT ISM<1GHZSMD

Search across all available documentation for this part.

Active

Jorjin Technologies Inc.

RF TXRX MOD BT ISM<1GHZSMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WS2116-A0	WS2116 Series

Antenna Type	Antenna Not Included	Antenna Not Included
For Use With/Related Products	-	WS2116-A0
Frequency	-	2.4 - 923 GHz
Frequency [Max]	923 MHz	923 MHz
Frequency [Min]	865 MHz	865 MHz
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Power - Output	24 dBm	24 dBm
Protocol	Sigfox	Sigfox
RF Family/Standard	Bluetooth, General ISM < 1GHz	Bluetooth, General ISM < 1GHz
Serial Interfaces	UART, I2C, SPI	UART, I2C, SPI
Supplied Contents	-	Board(s)
Type	-	Transceiver; Bluetooth® 5.x (BLE), Sigfox
Utilized IC / Part	ST BlueNRG-2, S2-LP	ST BlueNRG-2, S2-LP

EVALUATION BOARD FOR WS2116-A0

Part	Supplied Contents	Type	Frequency	For Use With/Related Products	Serial Interfaces	Package / Case	Utilized IC / Part	Operating Temperature [Max]	Operating Temperature [Min]	Power - Output	Protocol	Frequency [Max]	Frequency [Min]	Mounting Type	RF Family/Standard	Antenna Type
Jorjin Technologies Inc. WS2116EA0	Board(s)	Transceiver; Bluetooth® 5.x (BLE), Sigfox	2.4 GHz, 865 MHz, 923 MHz	WS2116-A0
Jorjin Technologies Inc. WS2116-A0					I2C, SPI, UART	Module	S2-LP, ST BlueNRG-2	85 °C	-40 °C	24 dBm	Sigfox	923 MHz	865 MHz	Surface Mount	Bluetooth, General ISM < 1GHz	Antenna Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bluetooth, General ISM < 1GHz Sigfox Transceiver Module 865MHz ~ 923MHz Antenna Not Included Surface Mount
