WS2116EA0

Active

Jorjin Technologies Inc.

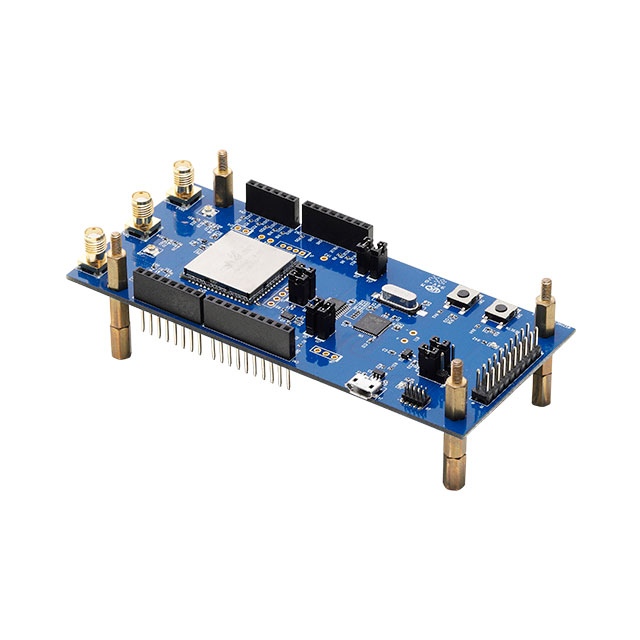

EVALUATION BOARD FOR WS2116-A0

Search across all available documentation for this part.

Active

Jorjin Technologies Inc.

EVALUATION BOARD FOR WS2116-A0

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WS2116EA0	WS2116 Series

Antenna Type	-	Antenna Not Included
For Use With/Related Products	WS2116-A0	WS2116-A0
Frequency	2.4 GHz, 923 MHz, 865 MHz	2.4 - 923 GHz
Frequency	-	923 MHz
Frequency	-	865 MHz
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	Module
Power - Output	-	24 dBm
Protocol	-	Sigfox
RF Family/Standard	-	Bluetooth, General ISM < 1GHz
Serial Interfaces	-	UART, I2C, SPI
Supplied Contents	Board(s)	Board(s)
Type	Transceiver; Bluetooth® 5.x (BLE), Sigfox	Transceiver; Bluetooth® 5.x (BLE), Sigfox
Utilized IC / Part	-	ST BlueNRG-2, S2-LP

EVALUATION BOARD FOR WS2116-A0

Part	Supplied Contents	Type	Frequency	For Use With/Related Products	Serial Interfaces	Package / Case	Utilized IC / Part	Operating Temperature [Max]	Operating Temperature [Min]	Power - Output	Protocol	Frequency [Max]	Frequency [Min]	Mounting Type	RF Family/Standard	Antenna Type
Jorjin Technologies Inc. WS2116EA0	Board(s)	Transceiver; Bluetooth® 5.x (BLE), Sigfox	2.4 GHz, 865 MHz, 923 MHz	WS2116-A0
Jorjin Technologies Inc. WS2116-A0					I2C, SPI, UART	Module	S2-LP, ST BlueNRG-2	85 °C	-40 °C	24 dBm	Sigfox	923 MHz	865 MHz	Surface Mount	Bluetooth, General ISM < 1GHz	Antenna Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 162.50

General part information

WS2116-A0 - Transceiver; Bluetooth® 5.x (BLE), Sigfox 865MHz, 923MHz, 2.4GHz Evaluation Board
