LCQT-SOIC14W - LCQT-SOIC14W

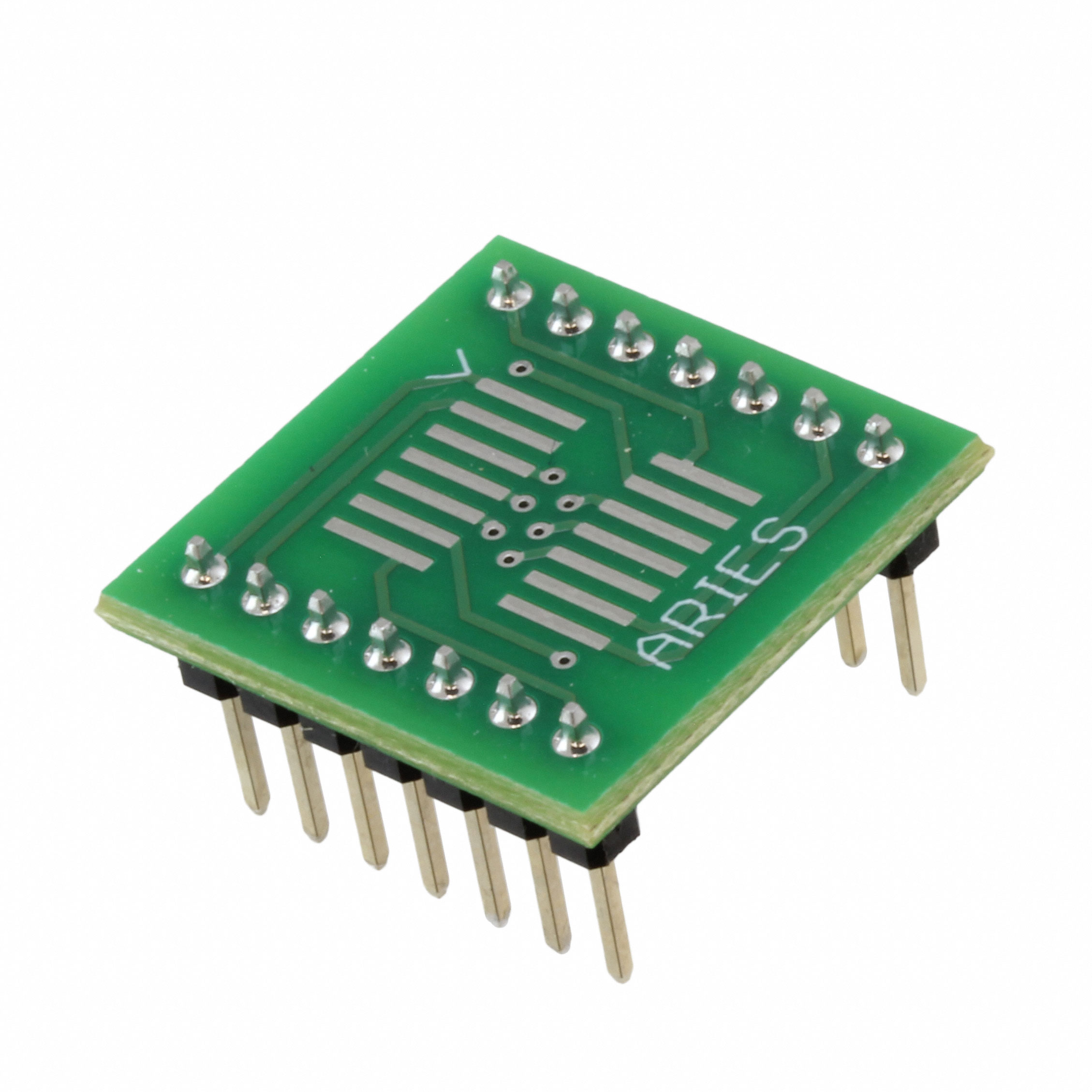

LCQT-SOIC14W

Active
Aries Electronics

SOCKET ADAPTER SOIC-W TO 14DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
LCQT-SOIC14W - LCQT-SOIC14W

LCQT-SOIC14W

Active
Aries Electronics

SOCKET ADAPTER SOIC-W TO 14DIP

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationLCQT-SOIC14WLCQT-SO Series
Board Thickness0.062 in0.062 in
Board Thickness0.0625 in0.0625 in
Board Thickness1.57 mm1.57 mm
MaterialFR4 Epoxy GlassFR4 Epoxy Glass
Number of Positions1414 - 28
Number of Positions-16
Package AcceptedSOICSOIC
Pitch [x]0.05 in0.05 in
Pitch [x]1.27 mm1.27 mm
Proto Board TypeSMD to DIPSMD to DIP
Size / Dimension [x]17.78 mm17.78 - 40.64 mm
Size / Dimension [x]0.7 in0.7 - 1.6 "
Size / Dimension [y]17.78 mm17.78 mm
Size / Dimension [y]0.7 in0.7 in

LCQT-SO Series

SOCKET ADAPTER SOIC TO 16DIP

PartProto Board TypeMaterialPitch [x]Pitch [x]Board ThicknessBoard ThicknessBoard ThicknessPackage AcceptedSize / Dimension [x]Size / Dimension [x]Size / Dimension [y]Size / Dimension [y]Number of PositionsNumber of Positions
Aries Electronics
LCQT-SOIC16
SMD to DIP
FR4 Epoxy Glass
0.05 in
1.27 mm
0.062 in
0.0625 in
1.57 mm
SOIC
20.32 mm
0.8 "
17.78 mm
0.7 in
16
Aries Electronics
LCQT-SOIC20W
SMD to DIP
FR4 Epoxy Glass
0.05 in
1.27 mm
0.062 in
0.0625 in
1.57 mm
SOIC
25.4 mm
1 in
17.78 mm
0.7 in
20
Aries Electronics
LCQT-SOIC16W
SMD to DIP
FR4 Epoxy Glass
0.05 in
1.27 mm
0.062 in
0.0625 in
1.57 mm
SOIC
20.32 mm
0.8 "
17.78 mm
0.7 in
16
Aries Electronics
LCQT-SOIC14W
SMD to DIP
FR4 Epoxy Glass
0.05 in
1.27 mm
0.062 in
0.0625 in
1.57 mm
SOIC
17.78 mm
0.7 in
17.78 mm
0.7 in
14
Aries Electronics
LCQT-SOIC32
SMD to DIP
FR4 Epoxy Glass
0.05 in
1.27 mm
0.062 in
0.0625 in
1.57 mm
SOIC
40.64 mm
1.6 "
17.78 mm
0.7 in
Aries Electronics
LCQT-SOIC32W
SMD to DIP
FR4 Epoxy Glass
0.05 in
1.27 mm
0.062 in
0.0625 in
1.57 mm
SOIC
40.64 mm
1.6 "
17.78 mm
0.7 in
Aries Electronics
LCQT-SOIC14
SMD to DIP
FR4 Epoxy Glass
0.05 in
1.27 mm
0.062 in
0.0625 in
1.57 mm
SOIC
17.78 mm
0.7 in
17.78 mm
0.7 in
14
Aries Electronics
LCQT-SOIC28
SMD to DIP
FR4 Epoxy Glass
0.05 in
1.27 mm
0.062 in
0.0625 in
1.57 mm
SOIC
35.56 mm
1.4 in
17.78 mm
0.7 in
28

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 4.52
10$ 4.10
34$ 3.89
68$ 3.80
102$ 3.62
272$ 3.16
510$ 3.07
1020$ 2.62
2516$ 2.44

Description

General part information

LCQT-SO Series

SOCKET ADAPTER SOIC-W TO 14DIP

Documents

Technical documentation and resources

Datasheet

Datasheet
