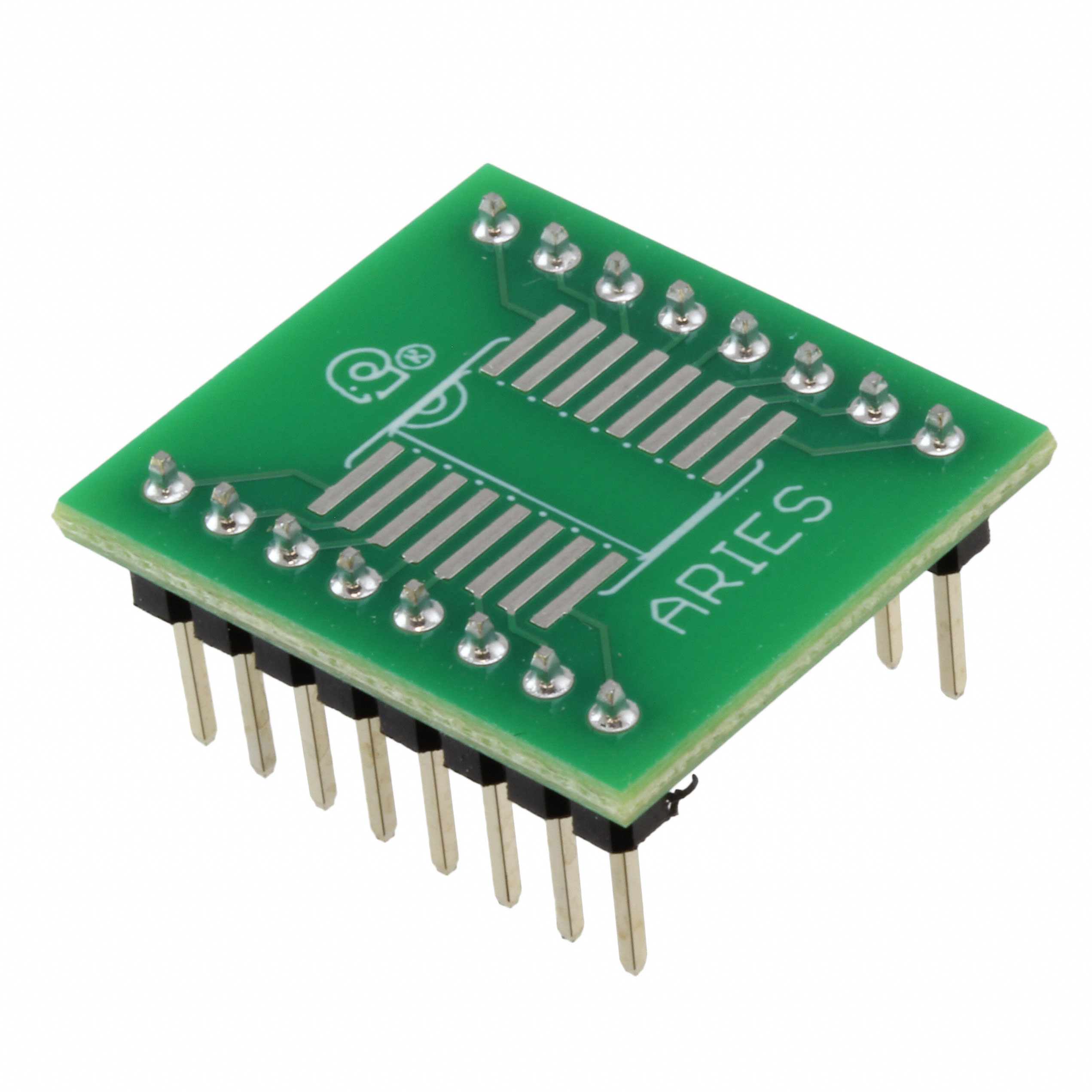

LCQT-SOIC16

Active

Aries Electronics

SOCKET ADAPTER SOIC TO 16DIP

Search across all available documentation for this part.

Active

Aries Electronics

SOCKET ADAPTER SOIC TO 16DIP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SOCKET ADAPTER SOIC TO 16DIP

Technical documentation and resources

Parameters and characteristics commom to parts in this series

SOCKET ADAPTER SOIC TO 16DIP

Part	Proto Board Type	Material	Pitch [x]	Pitch [x]	Board Thickness	Board Thickness	Board Thickness	Package Accepted	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Number of Positions	Number of Positions
Aries Electronics LCQT-SOIC16	SMD to DIP	FR4 Epoxy Glass	0.05 in	1.27 mm	0.062 in	0.0625 in	1.57 mm	SOIC	20.32 mm	0.8 "	17.78 mm	0.7 in	16
Aries Electronics LCQT-SOIC20W	SMD to DIP	FR4 Epoxy Glass	0.05 in	1.27 mm	0.062 in	0.0625 in	1.57 mm	SOIC	25.4 mm	1 in	17.78 mm	0.7 in		20
Aries Electronics LCQT-SOIC16W	SMD to DIP	FR4 Epoxy Glass	0.05 in	1.27 mm	0.062 in	0.0625 in	1.57 mm	SOIC	20.32 mm	0.8 "	17.78 mm	0.7 in	16
Aries Electronics LCQT-SOIC14W	SMD to DIP	FR4 Epoxy Glass	0.05 in	1.27 mm	0.062 in	0.0625 in	1.57 mm	SOIC	17.78 mm	0.7 in	17.78 mm	0.7 in		14
Aries Electronics LCQT-SOIC32	SMD to DIP	FR4 Epoxy Glass	0.05 in	1.27 mm	0.062 in	0.0625 in	1.57 mm	SOIC	40.64 mm	1.6 "	17.78 mm	0.7 in
Aries Electronics LCQT-SOIC32W	SMD to DIP	FR4 Epoxy Glass	0.05 in	1.27 mm	0.062 in	0.0625 in	1.57 mm	SOIC	40.64 mm	1.6 "	17.78 mm	0.7 in
Aries Electronics LCQT-SOIC14	SMD to DIP	FR4 Epoxy Glass	0.05 in	1.27 mm	0.062 in	0.0625 in	1.57 mm	SOIC	17.78 mm	0.7 in	17.78 mm	0.7 in		14
Aries Electronics LCQT-SOIC28	SMD to DIP	FR4 Epoxy Glass	0.05 in	1.27 mm	0.062 in	0.0625 in	1.57 mm	SOIC	35.56 mm	1.4 in	17.78 mm	0.7 in		28
