357-015-425-158
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 357-015-425-158 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 15 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
357-015 Series
...
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Color | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Flange Feature | Termination | Contact Material | Contact Finish | Mounting Type | Termination Rows | Read Out | Number of Positions | Contact Type | Features | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Gender | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | Black | 0.156 in | 3.96 mm | 15 | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Copper Alloy | Gold | Through Hole Right Angle | 1 | Dual | 30 | Semi Bellows | Card Guides | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 2 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | ||
EDAC Inc. | -40 °C | 105 ░C | Black | 0.156 in | 3.96 mm | 15 | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Copper Alloy | Tin | Through Hole | 1 | Dual | 30 | Semi Bellows | Polyester Thermoplastic | 2 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | |||||
EDAC Inc. | -40 °C | 105 ░C | Black | 0.156 in | 3.96 mm | 15 | 4-40 Flush Mount Threaded Insert Top Opening | Wire Wrap | Copper Alloy | Tin | Through Hole | 1 | Dual | 30 | Semi Bellows | Polyester Thermoplastic | 2 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | |||||
EDAC Inc. | -40 °C | 105 ░C | Black | 0.156 in | 3.96 mm | 15 | Flush Mount M3 Threaded Insert Top Opening | Solder | Copper Alloy | Tin | Through Hole | 1 | Single | 15 | Semi Bellows | Polyester Thermoplastic | 1 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | |||||
EDAC Inc. | -40 °C | 105 ░C | Black | 0.156 in | 3.96 mm | 15 | Flush Mount Top Opening Unthreaded | Solder | Copper Alloy | Gold | Through Hole Right Angle | 1 | Single | 15 | Semi Bellows | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 1 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 3.96 mm | 0.156 in | |
EDAC Inc. | -40 °C | 105 ░C | Black | 0.156 in | 3.96 mm | 15 | Flush Mount M3 Threaded Insert Top Opening | Solder | Copper Alloy | Gold | Through Hole Right Angle | 1 | Dual | 30 | Semi Bellows | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 2 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | |||
EDAC Inc. | -40 °C | 105 ░C | Black | 0.156 in | 3.96 mm | 15 | 4-40 Flush Mount Threaded Insert Top Opening | Wire Wrap | Copper Alloy | Gold | Through Hole | 1 | Single | 15 | Semi Bellows | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 1 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | |||
EDAC Inc. | -40 °C | 105 ░C | Black | 0.156 in | 3.96 mm | 15 | Flush Mount M3 Threaded Insert Top Opening | Solder | Copper Alloy | Gold | Through Hole | 1 | Single | 15 | Semi Bellows | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 1 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | |||
EDAC Inc. | -40 °C | 105 ░C | Black | 0.156 in | 3.96 mm | 15 | Flush Mount M3 Threaded Insert Top Opening | Solder | Copper Alloy | Gold | Through Hole | 1 | Dual | 30 | Semi Bellows | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 2 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | |||
EDAC Inc. | -40 °C | 105 ░C | Black | 0.156 in | 3.96 mm | 15 | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Copper Alloy | Tin | Through Hole | 1 | Single | 15 | Semi Bellows | Card Guides | Polyester Thermoplastic | 1 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
357-015 Series

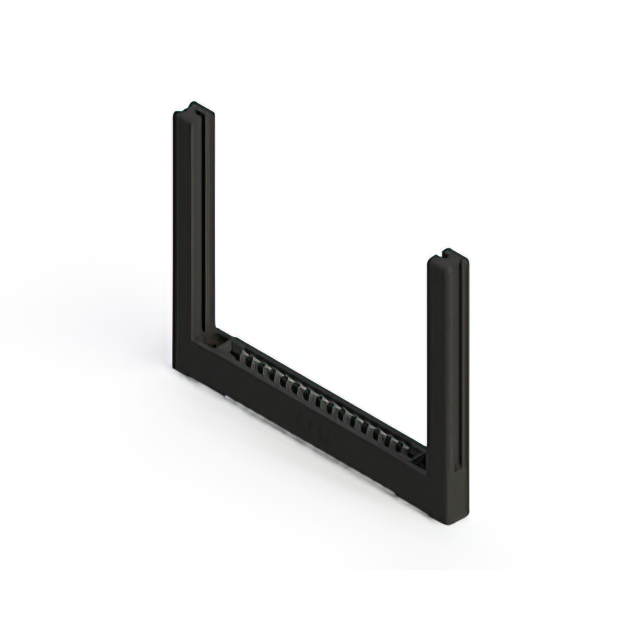

15 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Black
