357-015-431-107

Active

EDAC Inc.

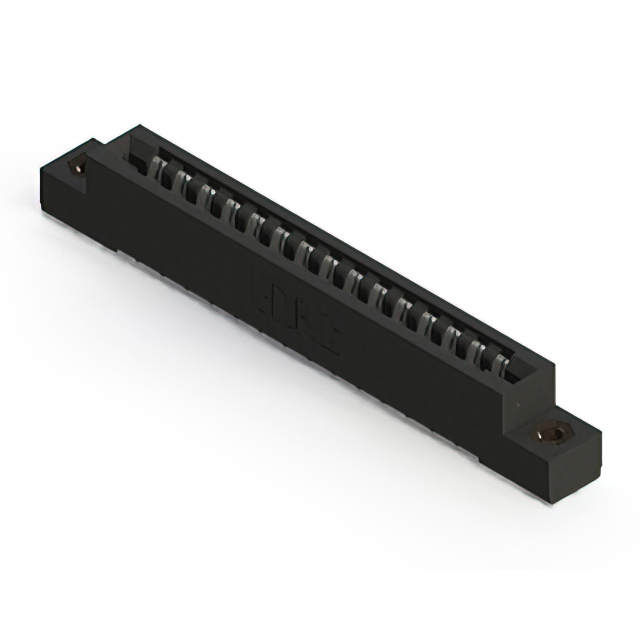

CARD EDGE CONNECTOR, 15 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, M3, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

357-015-431-107

Active

EDAC Inc.

CARD EDGE CONNECTOR, 15 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, M3, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	357-015-431-107

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	15
Number of Positions/Bay/Row [custom]	15
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

357-015 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Color	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Flange Feature	Termination	Contact Material	Contact Finish	Mounting Type	Termination Rows	Read Out	Number of Positions	Contact Type	Features	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 357-015-553-178	-40 °C	105 ░C	Black	0.156 in	3.96 mm	15	4-40 Flush Mount Threaded Insert Top Opening	Solder	Copper Alloy	Gold	Through Hole Right Angle	1	Dual	30	Semi Bellows	Card Guides	Polyester Thermoplastic	10 Áin	0.25 Ám	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge
EDAC Inc. 357-015-421-108	-40 °C	105 ░C	Black	0.156 in	3.96 mm	15	4-40 Flush Mount Threaded Insert Top Opening	Solder	Copper Alloy	Tin	Through Hole	1	Dual	30	Semi Bellows		Polyester Thermoplastic			2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge
EDAC Inc. 357-015-441-108	-40 °C	105 ░C	Black	0.156 in	3.96 mm	15	4-40 Flush Mount Threaded Insert Top Opening	Wire Wrap	Copper Alloy	Tin	Through Hole	1	Dual	30	Semi Bellows		Polyester Thermoplastic			2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge
EDAC Inc. 357-015-431-107	-40 °C	105 ░C	Black	0.156 in	3.96 mm	15	Flush Mount M3 Threaded Insert Top Opening	Solder	Copper Alloy	Tin	Through Hole	1	Single	15	Semi Bellows		Polyester Thermoplastic			1	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge
EDAC Inc. 357-015-558-104	-40 °C	105 ░C	Black	0.156 in	3.96 mm	15	Flush Mount Top Opening Unthreaded	Solder	Copper Alloy	Gold	Through Hole Right Angle	1	Single	15	Semi Bellows		Polyester Thermoplastic	10 Áin	0.25 Ám	1	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	3.96 mm	0.156 in
EDAC Inc. 357-015-553-107	-40 °C	105 ░C	Black	0.156 in	3.96 mm	15	Flush Mount M3 Threaded Insert Top Opening	Solder	Copper Alloy	Gold	Through Hole Right Angle	1	Dual	30	Semi Bellows		Polyester Thermoplastic	10 Áin	0.25 Ám	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge
EDAC Inc. 357-015-547-108	-40 °C	105 ░C	Black	0.156 in	3.96 mm	15	4-40 Flush Mount Threaded Insert Top Opening	Wire Wrap	Copper Alloy	Gold	Through Hole	1	Single	15	Semi Bellows		Polyester Thermoplastic	10 Áin	0.25 Ám	1	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge
EDAC Inc. 357-015-531-107	-40 °C	105 ░C	Black	0.156 in	3.96 mm	15	Flush Mount M3 Threaded Insert Top Opening	Solder	Copper Alloy	Gold	Through Hole	1	Single	15	Semi Bellows		Polyester Thermoplastic	10 Áin	0.25 Ám	1	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge
EDAC Inc. 357-015-521-107	-40 °C	105 ░C	Black	0.156 in	3.96 mm	15	Flush Mount M3 Threaded Insert Top Opening	Solder	Copper Alloy	Gold	Through Hole	1	Dual	30	Semi Bellows		Polyester Thermoplastic	10 Áin	0.25 Ám	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge
EDAC Inc. 357-015-425-158	-40 °C	105 ░C	Black	0.156 in	3.96 mm	15	4-40 Flush Mount Threaded Insert Top Opening	Solder	Copper Alloy	Tin	Through Hole	1	Single	15	Semi Bellows	Card Guides	Polyester Thermoplastic			1	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 13.62

Description

General part information

357-015 Series

15 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Black
