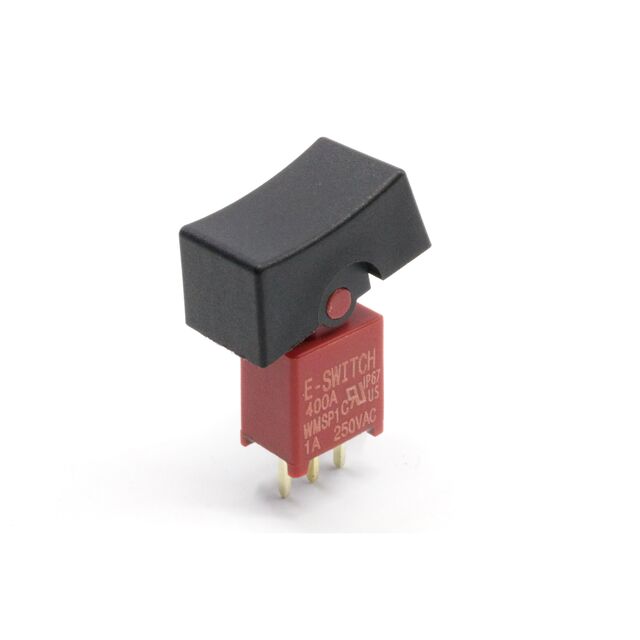

400AWMSP1R1BLKM2QE

Active

E-Switch

SPDT 28V 120V PLUGIN ROCKER SWITCHES ROHS

Search across all available documentation for this part.

Active

E-Switch

SPDT 28V 120V PLUGIN ROCKER SWITCHES ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Electrical Life	Actuator Type	Mounting Type	Mechanical Life	Actuator Marking	Termination Style	Ingress Protection	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Features	Circuit	Color - Actuator/Cap
E-Switch 400AWMSP1R1BLKM7QE	30000 Cycles	Concave (Curved)	Right Angle Through Hole Vertical	30000 Steps	No Marking	PC Pin	IP67 - Dust Tight Waterproof	On-On	120 V	28 V	3 A	-30 ░C	85 °C	Epoxy Sealed Terminals	SPDT	Black
E-Switch 400AWMSP1R1BLKM7RE	30000 Cycles	Concave (Curved)	Right Angle Through Hole Vertical	30000 Steps	No Marking	PC Pin	IP67 - Dust Tight Waterproof	On-On	20 V	20 V	0.4 VA	-30 ░C	85 °C	Epoxy Sealed Terminals	SPDT	Black
E-Switch 400AWMSP1R1BLKM2QE	30000 Cycles	Concave (Curved)	Through Hole	30000 Steps	No Marking	PC Pin	IP67 - Dust Tight Waterproof	On-On	120 V	28 V	3 A	-30 ░C	85 °C	Epoxy Sealed Terminals	SPDT	Black
E-Switch 400AWMSP1R1VS2QE	30000 Cycles	Concave (Curved)	Through Hole	30000 Steps	No Marking	PC Pin	IP67 - Dust Tight Waterproof	On-On	120 V	28 V	3 A	-30 ░C	85 °C	Epoxy Sealed Terminals	SPDT	Black
E-Switch 400AWMSP1R1BLKM6QE	30000 Cycles	Concave (Curved)	Through Hole Right Angle	30000 Steps	No Marking	PC Pin	IP67 - Dust Tight Waterproof	On-On	120 V	28 V	3 A	-30 ░C	85 °C	Epoxy Sealed Terminals	SPDT	Black
E-Switch 400AWMSP1R1BLKM1RE	30000 Cycles	Concave (Curved)	Panel Mount Snap-In	30000 Steps	No Marking	Solder Lug	IP67 - Dust Tight Waterproof	On-On	20 V	20 V	0.4 VA	-30 ░C	85 °C	Epoxy Sealed Terminals	SPDT	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 3A (AC/DC) 120 V Through Hole
