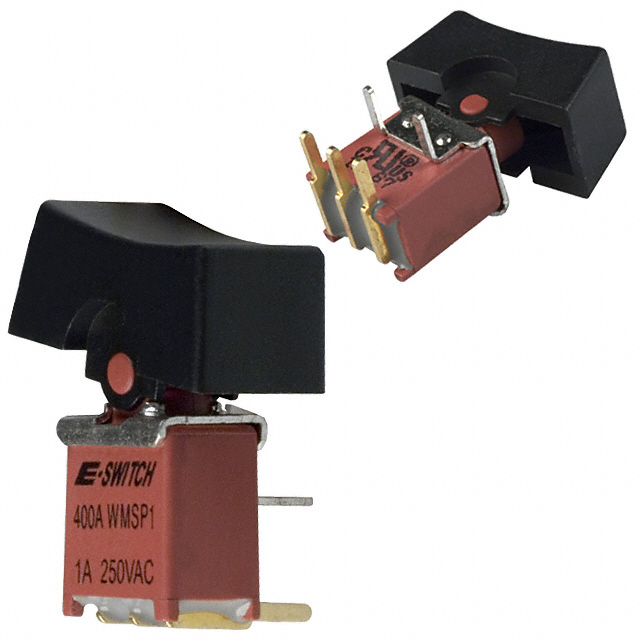

400AWMSP1R1BLKM6QE

Active

E-Switch

ROCKER; SPDT; POS: 2; ON-ON; 1A/250VAC; 3A/28VDC; BLACK; 400A; THT

Search across all available documentation for this part.

Active

E-Switch

ROCKER; SPDT; POS: 2; ON-ON; 1A/250VAC; 3A/28VDC; BLACK; 400A; THT

Technical Specifications

Parameters and characteristics for this part

Part	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Color - Actuator/Cap	Termination Style	Ingress Protection	Voltage Rating - AC	Switch Function	Current Rating (Amps)	Mechanical Life	Actuator Type	Circuit	Mounting Type	Electrical Life	Actuator Marking
E-Switch 400AWMDP1R1BLKM6RE	Epoxy Sealed Terminals	-30 ░C	85 °C	20 V	Black	PC Pin	IP67 - Dust Tight Waterproof	20 V	On-On	0.4 VA	30000 Steps	Concave (Curved)	DPDT	Through Hole Right Angle	30000 Cycles	No Marking
E-Switch 400AWMDP1R6M7RE	Epoxy Sealed Terminals	-30 ░C	85 °C	20 V	Black	PC Pin	IP67 - Dust Tight Waterproof	20 V	On-On	0.4 VA	30000 Steps	Concave (Curved)	DPDT	Right Angle Through Hole Vertical	30000 Cycles	No Marking
E-Switch 400AWMDP1R1M2QE	Epoxy Sealed Terminals	-30 ░C	85 °C	28 V	Black	PC Pin	IP67 - Dust Tight Waterproof	120 V	On-On	3 A	30000 Steps	Concave (Curved)	DPDT	Through Hole	30000 Cycles	No Marking
E-Switch 400AWMDP1R1BLKVS2RE	Epoxy Sealed Terminals	-30 ░C	85 °C	20 V	Black	PC Pin	IP67 - Dust Tight Waterproof	20 V	On-On	0.4 VA	30000 Steps	Concave (Curved)	DPDT	Through Hole	30000 Cycles	No Marking
E-Switch 400AWMSP1R1BLKM6QE	Epoxy Sealed Terminals	-30 ░C	85 °C	28 V	Black	PC Pin	IP67 - Dust Tight Waterproof	120 V	On-On	3 A	30000 Steps	Concave (Curved)	SPDT	Through Hole Right Angle	30000 Cycles	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 3A (AC/DC) 120 V Through Hole, Right Angle
