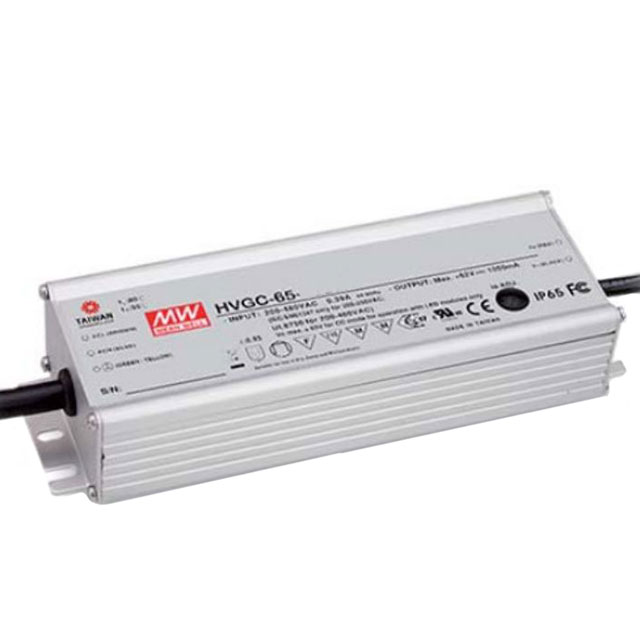

HVGC-65-700AB

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HVGC-65-700AB

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HVGC-65-700AB

Approval Agency	CE, cURus, CB, ENEC
Current - Output (Max) [Max]	1.05 A
Dimming	Analog, PWM
Efficiency	90 %
Features	OTP, OVP, SCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Power (Watts)	65 W
Ratings	IP65
Size / Dimension [x]	165 mm
Size / Dimension [x]	6.5 in
Size / Dimension [y]	61.5 mm
Size / Dimension [y]	2.42 in
Size / Dimension [z]	36.8 mm
Size / Dimension [z]	1.45 in
Standard Number	UL 8750
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max)	528 VAC
Voltage - Input (Min) [Min]	180 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	130 V
Voltage - Output [Min]	13 V

HVGC-65 Series

Part	Voltage - Input (Max)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Dimming	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Mounting Type	Power (Watts)	Type	Voltage - Output [Max]	Voltage - Output [Min]	Ratings	Number of Outputs	Topology	Approval Agency	Features	Voltage - Isolation	Termination Style	Standard Number
MEAN WELL USA Inc. HVGC-65-700B	528 VAC	36.8 mm	61.5 mm	165 mm	6.5 in	2.42 in	1.45 in	Analog PWM	90.5 %	-40 °C	80 C	700 mA	180 VAC	Chassis Mount	65 W	Constant Current	93 V	9 V	IP67	1	AC DC Converter	CB CE cURus ENEC	OTP OVP SCP	3750 V	Wire Leads
MEAN WELL USA Inc. HVGC-65-350AB	528 VAC	36.8 mm	61.5 mm	165 mm	6.5 in	2.42 in	1.45 in	Analog PWM	90 %	-40 °C	80 C	1.05 A	180 VAC	Chassis Mount	65 W	Constant Current	130 V	13 V	IP65	1	AC DC Converter	CB CE cURus ENEC	OTP OVP SCP	3750 V	Wire Leads	UL 8750
MEAN WELL USA Inc. HVGC-65-350A	528 VAC	36.8 mm	61.5 mm	165 mm	6.5 in	2.42 in	1.45 in		90 %	-40 °C	80 C	350 mA	180 VAC	Chassis Mount	65 W	Constant Current	186 V	18 V	IP65	1	AC DC Converter	CB CE cURus ENEC	OTP OVP SCP	3750 V	Wire Leads
MEAN WELL USA Inc. HVGC-65-1050A	528 VAC	36.8 mm	61.5 mm	165 mm	6.5 in	2.42 in	1.45 in		90 %	-40 °C	80 C	1.05 A	180 VAC	Chassis Mount	65 W	Constant Current	62 V	6 V	IP65	1	AC DC Converter	CB CE cURus ENEC	OTP OVP SCP	3750 V	Wire Leads
MEAN WELL USA Inc. HVGC-65-500A	528 VAC	36.8 mm	61.5 mm	165 mm	6.5 in	2.42 in	1.45 in		90.5 %	-40 °C	80 C	500 mA	180 VAC	Chassis Mount	65 W	Constant Current	130 V	13 V	IP65	1	AC DC Converter	CB CE cURus ENEC	OTP OVP SCP	3750 V	Wire Leads
MEAN WELL USA Inc. HVGC-65-700AB	528 VAC	36.8 mm	61.5 mm	165 mm	6.5 in	2.42 in	1.45 in	Analog PWM	90 %	-40 °C	80 C	1.05 A	180 VAC	Chassis Mount	65 W	Constant Current	130 V	13 V	IP65	1	AC DC Converter	CB CE cURus ENEC	OTP OVP SCP	3750 V	Wire Leads	UL 8750

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 64.28

Description

General part information

HVGC-65 Series

1.05A 13 ~ 130V Constant Current LED Driver AC DC Converter Topology 1 Output
