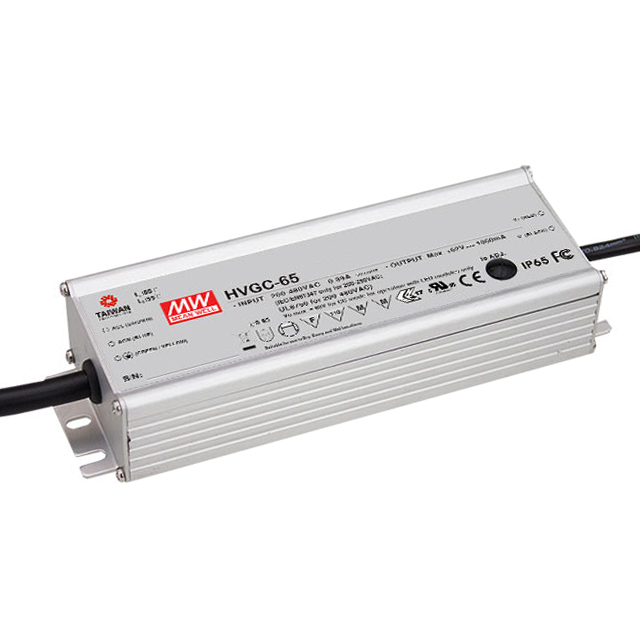

Specification	HVGC-65-1050A

Approval Agency	CB, ENEC, CE, cURus
Current - Output (Max)	1.05 A
Efficiency	90 %
Features	SCP, OTP, OVP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-40 °C
Power (Watts)	65 W
Ratings	IP65
Size / Dimension Height	1.45 in
Size / Dimension Length	6.5 in
Size / Dimension Width	2.42 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max)	528 VAC
Voltage - Input (Min)	180 V
Voltage - Isolation	3750 VDC
Voltage - Output (Max)	62 V
Voltage - Output (Min)	6 V

HVGC-65 Series

Part	Dimming	Topology	Current - Output (Max)	Voltage - Input (Max)	Ratings	Number of Outputs	Voltage - Output (Max)	Voltage - Output (Min)	Features	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Operating Temperature (Max)	Operating Temperature (Min)	Efficiency	Power (Watts)	Voltage - Input (Min)	Approval Agency	Voltage - Isolation	Termination Style	Type	Mounting Type	Standard Number
MEAN WELL USA Inc. HVGC-65-700B	Analog PWM	AC DC Converter	700 mA	528 VAC	IP67	1	93 V	9 V	OTP OVP SCP	2.42 in	1.45 in	6.5 in	80 °C	-40 °C	90.5 %	65 W	180 V	CB CE cURus ENEC	3750 VDC	Wire Leads	Constant Current	Chassis Mount
MEAN WELL USA Inc. HVGC-65-500B	Analog PWM	AC DC Converter	500 mA	528 VAC	IP67	1	130 V	13 V	OTP OVP SCP	2.42 in	1.45 in	6.5 in	80 °C	-40 °C	90.5 %	65 W	180 V	CB CE cURus ENEC	3750 VDC	Wire Leads	Constant Current	Chassis Mount
MEAN WELL USA Inc. HVGC-65-350AB	Analog PWM	AC DC Converter	1.05 A 350 mA	528 VAC	IP65	1	130 V 186 V	13 V 18 V	OTP OVP SCP	2.42 in	1.45 in	6.5 in	80 °C	-40 °C	90 %	65 W	180 V	CB CE cURus ENEC	3750 VDC	Wire Leads	Constant Current	Chassis Mount	UL 8750
MEAN WELL USA Inc. HVGC-65-350A		AC DC Converter	350 mA	528 VAC	IP65	1	186 V	18 V	OTP OVP SCP	2.42 in	1.45 in	6.5 in	80 °C	-40 °C	90 %	65 W	180 V	CB CE cURus ENEC	3750 VDC	Wire Leads	Constant Current	Chassis Mount
MEAN WELL USA Inc. HVGC-65-1050A		AC DC Converter	1.05 A	528 VAC	IP65	1	62 V	6 V	OTP OVP SCP	2.42 in	1.45 in	6.5 in	80 °C	-40 °C	90 %	65 W	180 V	CB CE cURus ENEC	3750 VDC	Wire Leads	Constant Current	Chassis Mount
MEAN WELL USA Inc. HVGC-65-500A		AC DC Converter	500 mA	528 VAC	IP65	1	130 V	13 V	OTP OVP SCP	2.42 in	1.45 in	6.5 in	80 °C	-40 °C	90.5 %	65 W	180 V	CB CE cURus ENEC	3750 VDC	Wire Leads	Constant Current	Chassis Mount
MEAN WELL USA Inc. HVGC-65-700AB	Analog PWM	AC DC Converter	1.05 A 700 mA	528 VAC	IP65	1	93 V 130 V	9 V 13 V	OTP OVP SCP	2.42 in	1.45 in	6.5 in	80 °C	-40 °C	90 %	65 W	180 V	CB CE cURus ENEC	3750 VDC	Wire Leads	Constant Current	Chassis Mount	UL 8750
MEAN WELL USA Inc. HVGC-65-350B	Analog PWM	AC DC Converter	350 mA	528 VAC	IP67	1	186 V	18 V	OTP OVP SCP	2.42 in	1.45 in	6.5 in	80 °C	-40 °C	90 %	65 W	180 V	CB CE cURus ENEC	3750 VDC	Wire Leads	Constant Current	Chassis Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

HVGC-65-1050A | Datasheet
