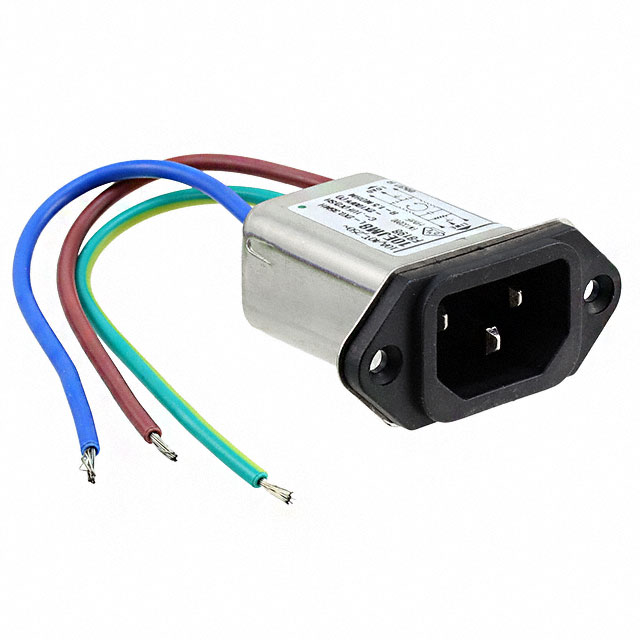

1-6609985-6

Obsolete

TE Connectivity Raychem Cable Protection

PWR ENT RCPT IEC320-C14 PNL WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCorcom EMI/RFI Filter Selector Chart

1-6609985-6

Obsolete

TE Connectivity Raychem Cable Protection

PWR ENT RCPT IEC320-C14 PNL WIRE

Deep-Dive with AI

DocumentsCorcom EMI/RFI Filter Selector Chart

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-6609985-6

Accomodates a Fuse	False
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Filter	10 A
Filter Type	Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Flange
Termination	Wire Leads

6609985 Series

Part	Voltage Rating - Appliance Inlet	Filter Type	Connector Type	Current Rating - Appliance Inlet	Mounting Type	Features	Termination	Termination	Termination	Connector Style	Approval Agency	Panel Cutout Dimensions	Current Rating - Filter	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]
TE Connectivity Raychem Cable Protection 6609985-2	250 VAC	Filtered (EMI RFI) - Commercial Medical	Male Blades Receptacle	3 A	Flange Panel Mount	Front or Rear Side Mount	0.25 in	6.3 mm	Quick Connect	IEC 320-C14	CSA UL VDE	Variable Size	3 A
TE Connectivity Raychem Cable Protection 1-6609985-0	250 VAC	Filtered (EMI RFI) - Commercial	Male Blades Receptacle	10 A	Panel Mount Snap-In		0.25 in	6.3 mm	Quick Connect	IEC 320-C14	CSA UL VDE	Variable Size	10 A	1.73 mm	0.79 mm	0.031 "	0.068 in
TE Connectivity Raychem Cable Protection 6609985-5	250 VAC	Filtered (EMI RFI) - Commercial Medical	Male Blades Receptacle	15 A	Flange Panel Mount	Front or Rear Side Mount	0.25 in	6.3 mm	Quick Connect	IEC 320-C14	CSA UL VDE	Variable Size	15 A
TE Connectivity Raychem Cable Protection 6609985-3	250 VAC	Filtered (EMI RFI) - Commercial Medical	Male Blades Receptacle	6 A	Flange Panel Mount	Front or Rear Side Mount	0.25 in	6.3 mm	Quick Connect	IEC 320-C14	CSA UL VDE	Variable Size	6 A
TE Connectivity Raychem Cable Protection 1-6609985-3		Filtered (EMI RFI) - Commercial Medical	Male Blades Receptacle		Flange Panel Mount	Front or Rear Side Mount			Wire Leads	IEC 320-C14	CSA UL VDE	Variable Size	1 A
TE Connectivity Raychem Cable Protection 1-6609985-6		Filtered (EMI RFI) - Commercial	Male Blades Receptacle		Flange Panel Mount				Wire Leads	IEC 320-C14			10 A
TE Connectivity Raychem Cable Protection 1-6609985-1		Filtered (EMI RFI) - Commercial	Male Blades Receptacle		Panel Mount Snap-In		0.25 in	6.3 mm	Quick Connect	IEC 320-C14		Variable Size	15 A	1.73 mm	0.79 mm	0.031 "	0.068 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

6609985 Series

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
