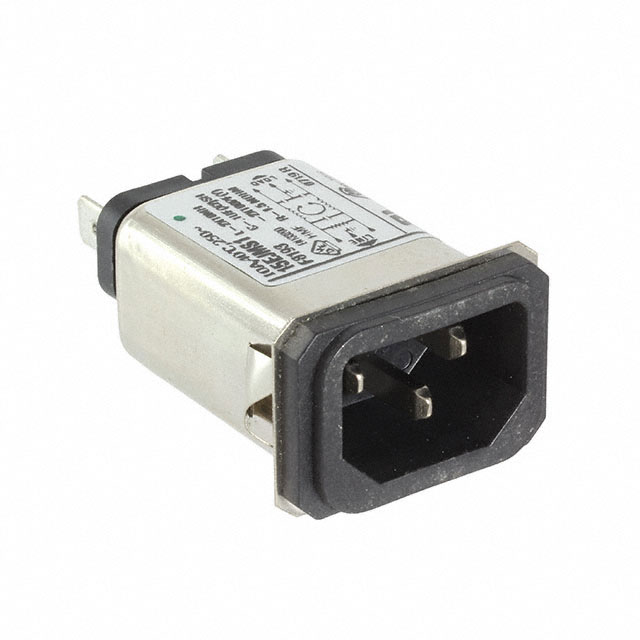

Specification	1-6609985-1

Accomodates a Fuse	No
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Filter	15 A
Filter Application	Commercial
Filter Subtype	EMI, RFI
Filter Type	Filtered
Mounting Type	Panel Mount, Snap-In
Number of Positions	3
Panel Cutout Description	Variable Size
Panel Thickness (Max)	0.068 in
Panel Thickness (Min)	0.031 in
Termination	Quick Connect
Termination Probe Tip OD	0.25 in

6609985 Series

Part	Features	Number of Positions	Current Rating - Filter	Mounting Type	Voltage Rating - Appliance Inlet	Connector Type	Approval Agency	Accomodates a Fuse	Termination Probe Tip OD	Termination	Connector Style	Panel Cutout Description	Current Rating - Appliance Inlet	Filter Subtype	Filter Application	Filter Type	Panel Thickness (Max)	Panel Thickness (Min)
TE Connectivity Corcom Filters 6609985-2	Front or Rear Side Mount	3	3 A	Flange Panel Mount	250 VAC	Male Blades Receptacle	CSA UL VDE	No	0.25 in	Quick Connect	IEC 320-C14	Variable Size	3 A	EMI RFI	Commercial Medical	Filtered
TE Connectivity Corcom Filters 1-6609985-0		3	10 A	Panel Mount Snap-In	250 VAC	Male Blades Receptacle	CSA UL VDE	No	0.25 in	Quick Connect	IEC 320-C14	Variable Size	10 A	EMI RFI	Commercial	Filtered	0.068 in	0.031 in
TE Connectivity Corcom Filters 6609985-5	Front or Rear Side Mount	3	15 A	Flange Panel Mount	250 VAC	Male Blades Receptacle	CSA UL VDE	No	0.25 in	Quick Connect	IEC 320-C14	Variable Size	15 A	EMI RFI	Commercial Medical	Filtered
TE Connectivity Corcom Filters 6609985-3	Front or Rear Side Mount	3	6 A	Flange Panel Mount	250 VAC	Male Blades Receptacle	CSA UL VDE	No	0.25 in	Quick Connect	IEC 320-C14	Variable Size	6 A	EMI RFI	Commercial Medical	Filtered
TE Connectivity Corcom Filters 1-6609985-3	Front or Rear Side Mount	3	1 A	Flange Panel Mount		Male Blades Receptacle	CSA UL VDE	No		Wire Leads	IEC 320-C14	Variable Size		EMI RFI	Commercial Medical	Filtered
TE Connectivity Corcom Filters 1-6609985-6		3	10 A	Flange Panel Mount		Male Blades Receptacle		No		Wire Leads	IEC 320-C14			EMI RFI	Commercial	Filtered
TE Connectivity Corcom Filters 1-6609985-1		3	15 A	Panel Mount Snap-In		Male Blades Receptacle		No	0.25 in	Quick Connect	IEC 320-C14	Variable Size		EMI RFI	Commercial	Filtered	0.068 in	0.031 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Corcom EMI/RFI Filter Selector Chart
