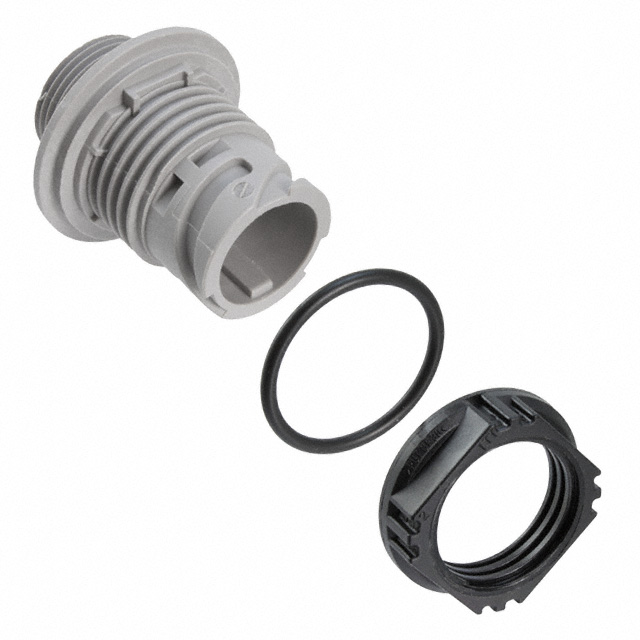

APD-1CPH8-2-12

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, APD SERIES, JAM NUT RECEPTACLE, 2 CONTACTS, CRIMP PIN - CONTACTS NOT SUPPLIED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN

APD-1CPH8-2-12

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, APD SERIES, JAM NUT RECEPTACLE, 2 CONTACTS, CRIMP PIN - CONTACTS NOT SUPPLIED

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APD-1CPH8-2-12

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Gray
Includes	1 O-Ring, 1 Connector, 1 Nut
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	1
Shell Material	Polybutylene Terephthalate (PBT), Glass Filled
Shielding	Unshielded
Type	For Male Pins

APD-1 Series

Part	Number of Positions	Orientation	Insert Material	Type	Shielding	Contact Type	Contact Shape	Shell Material	Note	Ingress Protection	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Housing Color	Mounting Feature	Includes	Contact Size	Mounting Type	Features
ITT Cannon, LLC APD-1SPH8-2	2	1	Polybutylene Terephthalate (PBT) Glass Filled	For Male Pins	Unshielded	Crimp	Circular	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Not Included	IP67 - Dust Tight Waterproof	Bayonet Lock	125 °C	-40 °C	Receptacle Housing	Black	Bulkhead
ITT Cannon, LLC APD-1CPH8-2-14	2	1	Polybutylene Terephthalate (PBT) Glass Filled	For Male Pins	Unshielded	Crimp	Circular	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Not Included	IP67 - Dust Tight Waterproof	Bayonet Lock	125 °C	-40 °C	Receptacle Housing	Blue	Bulkhead - Front Side Nut	1 Connector 1 Nut 1 O-Ring
ITT Cannon, LLC APD-1AP7EP	7	1	Polybutylene Terephthalate (PBT) Glass Filled	For Male Pins	Unshielded	Crimp	Circular	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Not Included	IP67 - Dust Tight Waterproof	Bayonet Lock	125 °C	-40 °C	Receptacle Housing	Black	Flange		1.6 mm
ITT Cannon, LLC APD-1AP37R	37	1	Polyamide (PA66) Nylon 6/6	For Male Pins	Unshielded	Crimp	Circular	Polyamide (PA66) Nylon 6/6 Glass Filled	Contacts Not Included	IP67 - Dust Tight Waterproof	Bayonet Lock	125 °C	-40 °C	Receptacle Housing	Black	Flange	1 Connector 1 O-Ring
ITT Cannon, LLC APD-1CS51-S	51	1	Polybutylene Terephthalate (PBT) Glass Filled	For Female Sockets	Unshielded	Crimp	Circular	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Not Included	IP67 IP69K	Bayonet Lock	125 °C	-40 °C	Receptacle Housing	Green	Bulkhead - Front Side Nut	1 Connector 1 Nut 1 O-Ring
ITT Cannon, LLC APD-1CPH8-2-12	2	1	Polybutylene Terephthalate (PBT) Glass Filled	For Male Pins	Unshielded	Crimp	Circular	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Not Included	IP67 - Dust Tight Waterproof	Bayonet Lock	125 °C	-40 °C	Receptacle Housing	Gray	Bulkhead - Front Side Nut	1 Connector 1 Nut 1 O-Ring
ITT Cannon, LLC APD-14AP7EP	7	1	Polybutylene Terephthalate (PBT) Glass Filled	For Male Pins	Unshielded	Crimp	Circular	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Not Included	IP67 - Dust Tight Waterproof	Bayonet Lock	125 °C	-40 °C	Receptacle Housing	Blue	Flange		1.6 mm
ITT Cannon, LLC APD-1AP19S-R	19	1	Polybutylene Terephthalate (PBT) Glass Filled	For Male Pins	Unshielded	Crimp	Circular	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Not Included	IP67 - Dust Tight Waterproof	Bayonet Lock	125 °C	-40 °C	Receptacle Housing	Black	Flange	1 Connector 1 O-Ring
ITT Cannon, LLC APD-1BSH8-2	2	1	Polybutylene Terephthalate (PBT) Glass Filled	For Female Sockets	Unshielded	Crimp	Circular	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Not Included	IP67 - Dust Tight Waterproof	Bayonet Lock	125 °C	-40 °C	Plug Housing	Black				Free Hanging (In-Line)	Coupling Nut
ITT Cannon, LLC APD-1CPH8-2	2	1	Polybutylene Terephthalate (PBT) Glass Filled	For Male Pins	Unshielded	Crimp	Circular	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Not Included	IP67 - Dust Tight Waterproof	Bayonet Lock	125 °C	-40 °C	Receptacle Housing	Black	Bulkhead - Front Side Nut	1 Connector 1 Nut 1 O-Ring

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.78
		10	$ 11.37
		25	$ 10.28
		50	$ 9.55
		100	$ 8.89
		250	$ 8.28
Newark	Each	100	$ 10.30

Description

General part information

APD-1 Series

2 (Power) Position Circular Connector Receptacle Housing Panel Mount
