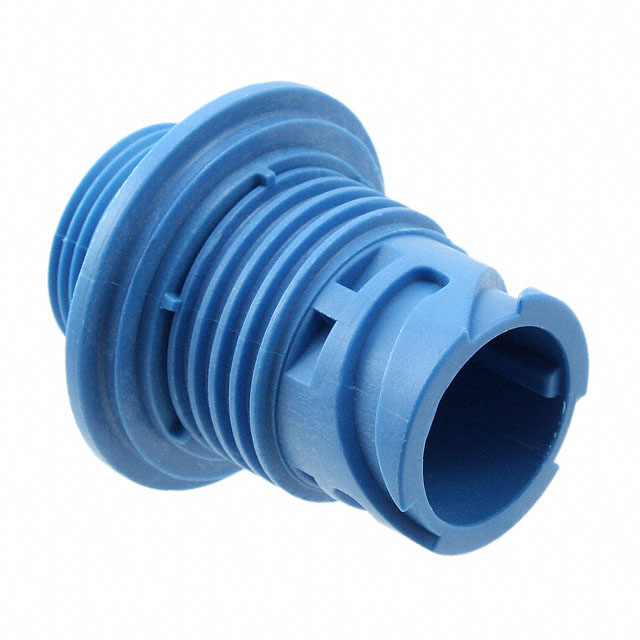

Specification	APD-1CPH8-2-14

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Blue
Includes	O-Ring, Nut, Connector
Includes Total Count	3 pcs
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	PBT, Glass Filled, Polybutylene Terephthalate
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Orientation Angle	1 °
Position Types	Power
Shell Material	Polybutylene Terephthalate (PBT), Glass Filled
Shielding	Unshielded
Type	For Male Pins

APD-1 Series

Part	Connector Type	Type	Shielding	Insert Material	Note	Number of Positions	Position Types	Ingress Protection Description	Ingress Protection IP Rating	Orientation Angle	Mounting Type	Fastening Type	Contact Shape	Shell Material	Housing Color	Contact Type	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Feature	Includes Total Count	Includes	Contact Size	Features
ITT Cannon, LLC APD-1SPH8-2	Receptacle Housing	For Male Pins	Unshielded	Glass Filled PBT Polybutylene Terephthalate	Contacts Not Included	2	Power	Dust Tight Waterproof	IP67	1 °	Panel Mount	Bayonet Lock	Circular	Glass Filled Polybutylene Terephthalate (PBT)	Black	Crimp	125 °C	-40 °C	Bulkhead
ITT Cannon, LLC APD-1CPH8-2-14	Receptacle Housing	For Male Pins	Unshielded	Glass Filled PBT Polybutylene Terephthalate	Contacts Not Included	2	Power	Dust Tight Waterproof	IP67	1 °	Panel Mount	Bayonet Lock	Circular	Glass Filled Polybutylene Terephthalate (PBT)	Blue	Crimp	125 °C	-40 °C	Bulkhead Front Side Nut	3 pcs	Connector Nut O-Ring
ITT Cannon, LLC APD-1AP7EP	Receptacle Housing	For Male Pins	Unshielded	Glass Filled PBT Polybutylene Terephthalate	Contacts Not Included	7		Dust Tight Waterproof	IP67	1 °	Panel Mount	Bayonet Lock	Circular	Glass Filled Polybutylene Terephthalate (PBT)	Black	Crimp	125 °C	-40 °C	Flange			1.6 mm
ITT Cannon, LLC APD-1AP7	Receptacle Housing	For Male Pins	Unshielded	Glass Filled PBT Polybutylene Terephthalate	Contacts Not Included	7		Dust Tight Waterproof	IP67	1 °	Panel Mount	Bayonet Lock	Circular	Glass Filled Polybutylene Terephthalate (PBT)	Black	Crimp	125 °C	-40 °C	Flange			1.6 mm
ITT Cannon, LLC APD-1AP37R	Receptacle Housing	For Male Pins	Unshielded	Nylon 6/6 PA66 Polyamide	Contacts Not Included	37 pos		Dust Tight Waterproof	IP67	1 °	Panel Mount	Bayonet Lock	Circular	Glass Filled Nylon 6/6 Polyamide (PA66)	Black	Crimp	125 °C	-40 °C	Flange	2 pcs	Connector O-Ring
ITT Cannon, LLC APD-1CS51-S	Receptacle Housing	For Female Sockets	Unshielded	Glass Filled PBT Polybutylene Terephthalate	Contacts Not Included	51		Dust Tight Water Resistant Waterproof	IP67 IP69K	1 °	Panel Mount	Bayonet Lock	Circular	Glass Filled Polybutylene Terephthalate (PBT)	Green	Crimp	125 °C	-40 °C	Bulkhead Front Side Nut	3 pcs	Connector Nut O-Ring
ITT Cannon, LLC APD-1CPH8-2-12	Receptacle Housing	For Male Pins	Unshielded	Glass Filled PBT Polybutylene Terephthalate	Contacts Not Included	2	Power	Dust Tight Waterproof	IP67	1 °	Panel Mount	Bayonet Lock	Circular	Glass Filled Polybutylene Terephthalate (PBT)	Gray	Crimp	125 °C	-40 °C	Bulkhead Front Side Nut	3 pcs	Connector Nut O-Ring
ITT Cannon, LLC APD-14AP7EP	Receptacle Housing	For Male Pins	Unshielded	Glass Filled PBT Polybutylene Terephthalate	Contacts Not Included	7		Dust Tight Waterproof	IP67	1 °	Panel Mount	Bayonet Lock	Circular	Glass Filled Polybutylene Terephthalate (PBT)	Blue	Crimp	125 °C	-40 °C	Flange			1.6 mm
ITT Cannon, LLC APD-1AP19S-R	Receptacle Housing	For Male Pins	Unshielded	Glass Filled PBT Polybutylene Terephthalate	Contacts Not Included	19		Dust Tight Waterproof	IP67	1 °	Panel Mount	Bayonet Lock	Circular	Glass Filled Polybutylene Terephthalate (PBT)	Black	Crimp	125 °C	-40 °C	Flange	2 pcs	Connector O-Ring
ITT Cannon, LLC APD-1BSH8-2	Plug Housing	For Female Sockets	Unshielded	Glass Filled PBT Polybutylene Terephthalate	Contacts Not Included	2	Power	Dust Tight Waterproof	IP67	1 °	Free Hanging (In-Line)	Bayonet Lock	Circular	Glass Filled Polybutylene Terephthalate (PBT)	Black	Crimp	125 °C	-40 °C					Coupling Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

APD-1CPH8-2-14 | Datasheet

Enhanced Product Overview EN
