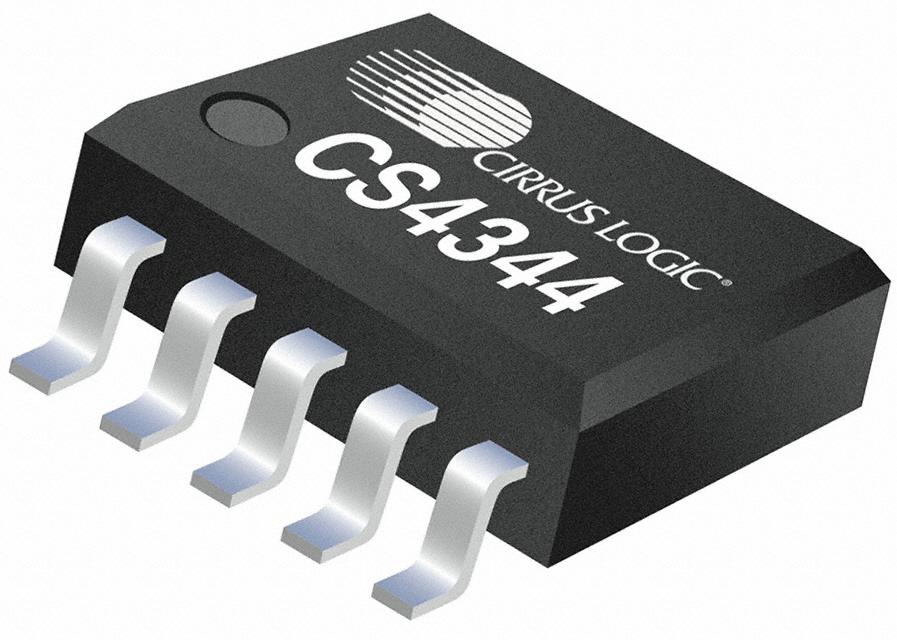

CS4344-CZZR

Obsolete

Cirrus Logic Inc.

D/A CONVERTER, 1 FUNC, SERIAL INPUT LOADING, PDSO10, 3 MM, MO-187, TSSOP-10

Search across all available documentation for this part.

Obsolete

Cirrus Logic Inc.

D/A CONVERTER, 1 FUNC, SERIAL INPUT LOADING, PDSO10, 3 MM, MO-187, TSSOP-10

Technical Specifications

Parameters and characteristics for this part

Specification	CS4344-CZZR

Data Interface	I2S
Mounting Type	Surface Mount
Number of Channels [custom]	2
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Package / Case	10-MSOP, 10-TFSOP
Package / Case [x]	3 mm
Package / Case [x]	0.118 in
Resolution (Bits)	24 b
Sampling Rate (Per Second)	192k
Supplier Device Package	10-SSOP
Type	Audio, DAC
Voltage - Supply	5 V
Voltage - Supply [Max]	3.47 V
Voltage - Supply [Min]	3 V
Voltage Supply Source	Single Supply

Part	Primary Attributes	Utilized IC / Part	Contents	Function	Type	Number of Channels	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Voltage - Supply	Package / Case	Package / Case [x]	Package / Case [x]	Voltage Supply Source	Data Interface	Operating Temperature [Max]	Operating Temperature [Min]	Sampling Rate (Per Second)	Resolution (Bits)	Supplier Device Package	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Number of Channels [custom]	Supplied Contents
Cirrus Logic Inc. CDB-4344	2-Channel (Dual)	CS4344	Board(s)	Audio/Stereo DAC	Audio
Cirrus Logic Inc. CS4344-DZZ					Audio DAC	1	Surface Mount	3.47 V	3 V	5 V	10-MSOP 10-TFSOP	3 mm	0.118 in	Single Supply	SPI	85 °C	-40 °C	192k	24 b
Cirrus Logic Inc. CS4344-CZZR					Audio DAC		Surface Mount	3.47 V	3 V	5 V	10-MSOP 10-TFSOP	3 mm	0.118 in	Single Supply	I2S			192k	24 b	10-SSOP	-10 °C	158 °F	2
Cirrus Logic Inc. CDB4344	2-Channel (Dual)	CS4344	Board(s)	Audio/Stereo DAC	Audio																			Board(s)
Cirrus Logic Inc. CS4344-CZZ					Audio DAC		Surface Mount	3.47 V	3 V	5 V	10-MSOP 10-TFSOP	3 mm	0.118 in	Single Supply	I2S			192k	24 b		-10 °C	158 °F	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

DAC, Audio 24 b 192k I2S 10-SSOP
