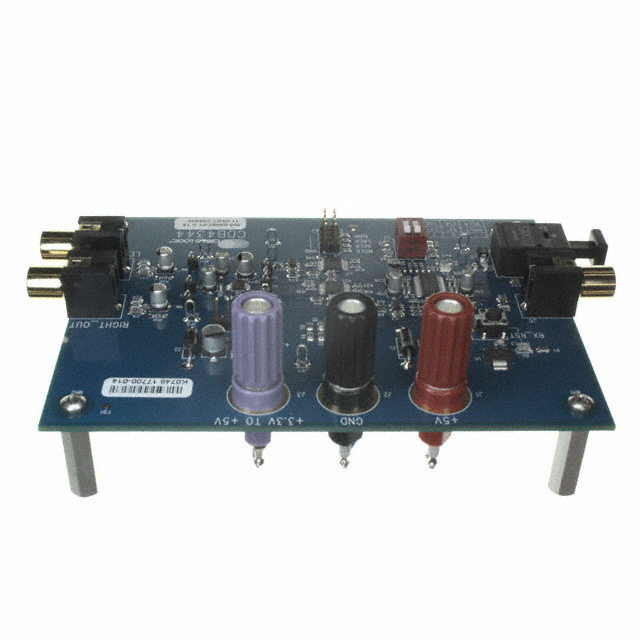

CDB4344

Obsolete

Cirrus Logic Inc.

EVAL BOARD FOR CS4344

Search across all available documentation for this part.

Obsolete

Cirrus Logic Inc.

EVAL BOARD FOR CS4344

Technical Specifications

Parameters and characteristics for this part

Part	Primary Attributes	Utilized IC / Part	Contents	Function	Type	Number of Channels	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Voltage - Supply	Package / Case	Package / Case [x]	Package / Case [x]	Voltage Supply Source	Data Interface	Operating Temperature [Max]	Operating Temperature [Min]	Sampling Rate (Per Second)	Resolution (Bits)	Supplier Device Package	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Number of Channels [custom]	Supplied Contents
Cirrus Logic Inc. CDB-4344	2-Channel (Dual)	CS4344	Board(s)	Audio/Stereo DAC	Audio
Cirrus Logic Inc. CS4344-DZZ					Audio DAC	1	Surface Mount	3.47 V	3 V	5 V	10-MSOP 10-TFSOP	3 mm	0.118 in	Single Supply	SPI	85 °C	-40 °C	192k	24 b
Cirrus Logic Inc. CS4344-CZZR					Audio DAC		Surface Mount	3.47 V	3 V	5 V	10-MSOP 10-TFSOP	3 mm	0.118 in	Single Supply	I2S			192k	24 b	10-SSOP	-10 °C	158 °F	2
Cirrus Logic Inc. CDB4344	2-Channel (Dual)	CS4344	Board(s)	Audio/Stereo DAC	Audio																			Board(s)
Cirrus Logic Inc. CS4344-CZZ					Audio DAC		Surface Mount	3.47 V	3 V	5 V	10-MSOP 10-TFSOP	3 mm	0.118 in	Single Supply	I2S			192k	24 b		-10 °C	158 °F	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 373.20

General part information

CS4344 Audio/Stereo DAC Audio Evaluation Board

Technical documentation and resources
