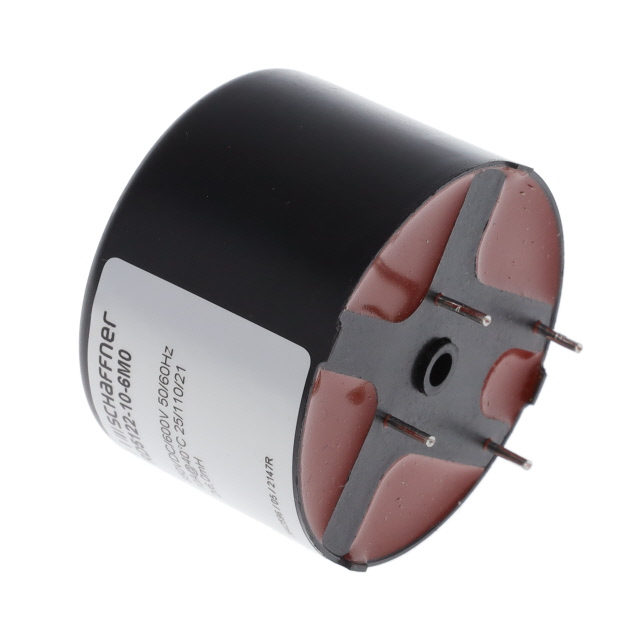

RD5122-10-6M0
ActiveTE Connectivity Raychem Cable Protection
24.25MΩ 2 COMMON MODE FILTERS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RD5122-10-6M0 |
|---|---|
| Current Rating (Max) | 10 A |
| DC Resistance (DCR) (Max) | 24.25 mOhm |
| Filter Type | Power Line |
| Height (Max) | 1.398 in |
| Height (Max) | 35.5 mm |
| Inductance @ Frequency | 6 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Horizontal |
| Package / Case | 4 Lead |
| Size / Dimension [x] | 50 mm |
| Size / Dimension [x] | 1.969 in |
| Size / Dimension [y] | 1.969 in |
| Size / Dimension [y] | 50 mm |
| Voltage Rating - AC | 600 V |
| Voltage Rating - DC | 850 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RD5122 Series
6 mH @ 400 Hz 2 Line Common Mode Choke Through Hole 10A (Typ) DCR 24.25mOhm (Typ)
