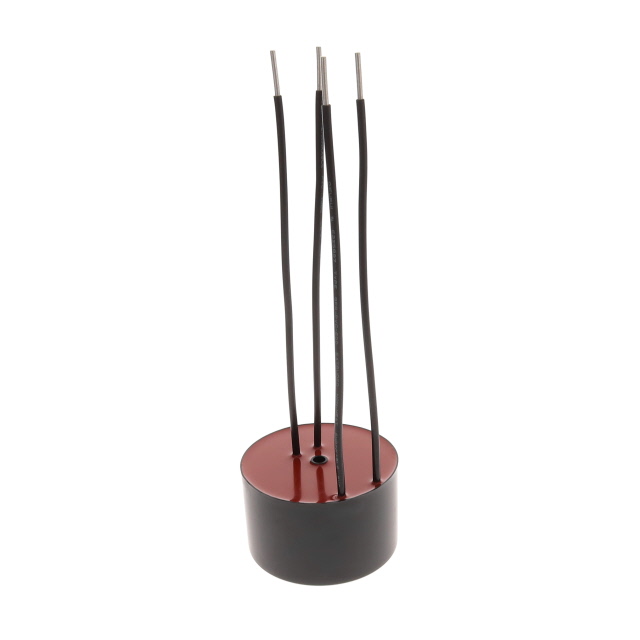

Specification	RD8127-25-5M0

Current Rating (Max)	25 A
Current Rating (Typ)	25 A
DC Resistance (DCR) (Max)	8.45 mOhm
DC Resistance (DCR) (Typ)	8.45 mOhm
Filter Type	Power Line
Height (Max)	1.988 in
Inductance	5 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature (Max)	110 °C
Operating Temperature (Min)	-25 °C
Package / Case	4 PC Pin, Horizontal
Package Leads	4 Leads
Package Name	Horizontal
Size / Dimension Length	3.15 in
Size / Dimension Width	3.15 in
Voltage Rating - AC	600 VAC
Voltage Rating - DC	850 V

Schaffner RD-Series Series

...

Part	DC Resistance (DCR) (Typ)	DC Resistance (DCR) (Max)	Mounting Type	Size / Dimension Length	Size / Dimension Width	Number of Lines	Package Leads	Package / Case	Package Name	Voltage Rating - AC	Operating Temperature (Max)	Operating Temperature (Min)	Height (Max)	Inductance	Voltage Rating - DC	Current Rating (Typ)	Current Rating (Max)	Filter Type	Pad Count
TE Connectivity AMP Connectors RD8127-25-5M0	8.45 mOhm	8.45 mOhm	Through Hole	3.15 in	3.15 in	2	4 Leads	4 PC Pin Horizontal	Horizontal	600 VAC	110 °C	-25 °C	1.988 in	5 mH	850 V	25 A	25 A	Power Line
TE Connectivity AMP Connectors RD5122-10-6M0	24.25 mOhm	24.25 mOhm	Through Hole	1.969 in	1.969 in	2	4 Leads	4 PC Pin Horizontal	Horizontal	600 VAC	110 °C	-25 °C	1.398 in	6 mH	850 V	10 A	10 A	Power Line
TE Connectivity AMP Connectors RD7137-36-0M5	2.75 mOhm	2.75 mOhm	Through Hole	2.756 in	2.756 in	3				600 VAC	110 °C	-25 °C	1.594 in	500 µH	850 V	36 A	36 A	Power Line
TE Connectivity AMP Connectors RD8147-36-0M8	3 mOhm	3 mOhm	Through Hole	3.15 in	3.15 in	4	8 Leads		Horizontal	600 VAC	110 °C	-25 °C	1.988 in	800 µH	850 V	36 A	36 A	Power Line	8 PC Pin
TE Connectivity AMP Connectors RD7137-10-6M6	21.9 mOhm	21.9 mOhm	Through Hole	2.756 in	2.756 in	3				600 VAC	110 °C	-25 °C	1.594 in	6.6 mH	850 V	10 A	10 A	Power Line
TE Connectivity AMP Connectors RD5122-16-2M0	9.5 mOhm	9.5 mOhm	Through Hole	1.969 in	1.969 in	2	4 Leads	4 PC Pin Horizontal	Horizontal	600 VAC	110 °C	-25 °C	1.398 in	2 mH	850 V	16 A	16 A	Power Line
TE Connectivity AMP Connectors RD5132-6-5M0	38 mOhm	38 mOhm	Through Hole	1.969 in	1.969 in	3				600 VAC	110 °C	-25 °C	1.398 in	5 mH	850 V	6 A	6 A	Power Line
TE Connectivity AMP Connectors RD8147-25-1M3	5.05 mOhm	5.05 mOhm	Through Hole	3.15 in	3.15 in	4	8 Leads		Horizontal	600 VAC	110 °C	-25 °C	1.988 in	1.3 mH	850 V	25 A	25 A	Power Line	8 PC Pin
TE Connectivity AMP Connectors RD8137-25-2M5	6.4 mOhm	6.4 mOhm	Through Hole	3.15 in	3.15 in	3				600 VAC	110 °C	-25 °C	1.988 in	2.5 mH	850 V	25 A	25 A	Power Line
TE Connectivity AMP Connectors RD5122-10-6M0	24.25 mOhm	24.25 mOhm	Through Hole	1.969 in	1.969 in	2	4 Leads	4 PC Pin Horizontal	Horizontal	600 VAC	110 °C	-25 °C	1.398 in	6 mH	850 V	10 A	10 A	Power Line
