CG2430X1-EVAL

Active

CEL

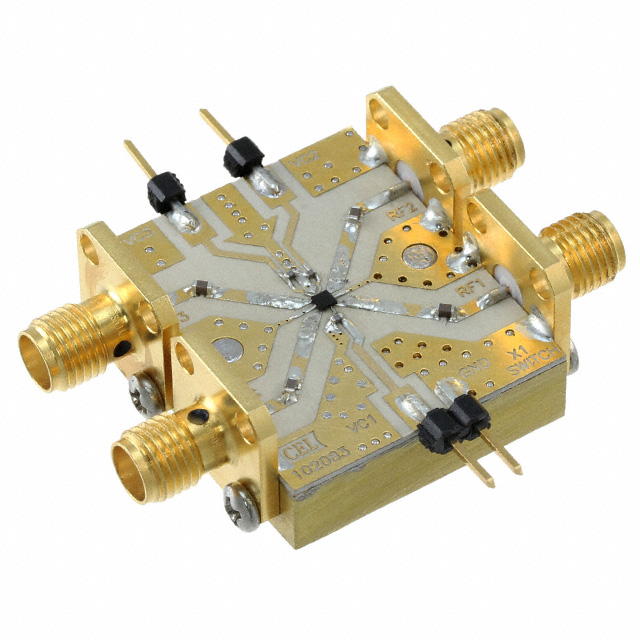

EVAL BOARD FOR CG2430X1

Search across all available documentation for this part.

Active

CEL

EVAL BOARD FOR CG2430X1

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CG2430X1-EVAL	CG2430 Series

Circuit	-	SP3T
For Use With/Related Products	CG2430X1	CG2430X1
Frequency [Max]	6 GHz	6 GHz
Frequency [Min]	100 MHz	100 MHz
Frequency Range	-	100 MHz
Frequency Range	-	6 GHz
IIP3	-	55 dBm
Impedance	-	50 Ohms
Insertion Loss	-	0.6 dB
Isolation	-	25 dB
P1dB	-	31 dBm
Package / Case	-	8-XFDFN Exposed Pad
RF Type	-	802.11a/b/g/n/ac
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	8-TSON, 8-TSON (1.5x1.5)
Test Frequency	-	6 GHz
Type	SP3T	SP3T
Voltage - Supply	-	1.8 V
Voltage - Supply	-	5 V

IC RF SWITCH SP3T 6GHZ 8TSON

Part	P1dB	Package / Case	Isolation	IIP3	Insertion Loss	Frequency Range [Min]	Frequency Range [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	RF Type	Circuit	Impedance	Supplier Device Package	Test Frequency	Supplied Contents	For Use With/Related Products	Frequency [Max]	Frequency [Min]	Type
CEL CG2430X1-C2	31 dBm	8-XFDFN Exposed Pad	25 dB	55 dBm	0.6 dB	100 MHz	6 GHz	1.8 V	5 V	802.11a/b/g/n/ac	SP3T	50 Ohms	8-TSON	6 GHz
CEL CG2430X1-EVAL															Board(s)	CG2430X1	6 GHz	100 MHz	SP3T
CEL CG2430X1	31 dBm	8-XFDFN Exposed Pad			0.6 dB	100 MHz	6 GHz	1.8 V	5 V	802.11a/b/g/n/ac	SP3T	50 Ohms	8-TSON (1.5x1.5)	6 GHz
