CG2430X1

Active

CEL

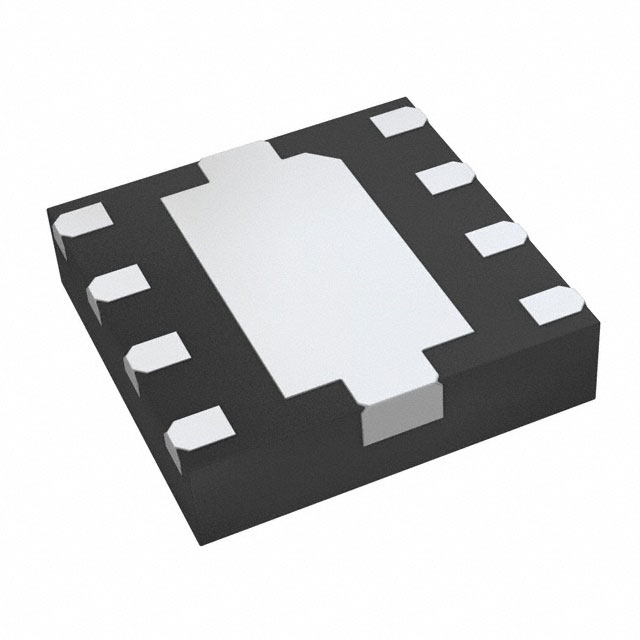

IC RF SWITCH SP3T 6GHZ 8TSON

Search across all available documentation for this part.

Active

CEL

IC RF SWITCH SP3T 6GHZ 8TSON

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Switch IC 802.11a/b/g/n/ac SP3T 6 GHz 50Ohm 8-TSON (1.5x1.5)

Technical documentation and resources

Specification	CG2430X1	CG2430 Series

Circuit	SP3T	SP3T
For Use With/Related Products	-	CG2430X1
Frequency	-	6 GHz
Frequency	-	100 MHz
Frequency Range [Max]	6 GHz	6 GHz
Frequency Range [Min]	100 MHz	100 MHz
IIP3	-	55 dBm
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.6 dB	0.6 dB
Isolation	-	25 dB
P1dB	31 dBm	31 dBm
Package / Case	8-XFDFN Exposed Pad	8-XFDFN Exposed Pad
RF Type	802.11a/b/g/n/ac	802.11a/b/g/n/ac
Supplied Contents	-	Board(s)
Supplier Device Package	8-TSON (1.5x1.5)	8-TSON, 8-TSON (1.5x1.5)
Test Frequency	6 GHz	6 GHz
Type	-	SP3T
Voltage - Supply [Max]	5 V	5 V
Voltage - Supply [Min]	1.8 V	1.8 V

Part	P1dB	Package / Case	Isolation	IIP3	Insertion Loss	Frequency Range [Min]	Frequency Range [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	RF Type	Circuit	Impedance	Supplier Device Package	Test Frequency	Supplied Contents	For Use With/Related Products	Frequency [Max]	Frequency [Min]	Type
CEL CG2430X1-C2	31 dBm	8-XFDFN Exposed Pad	25 dB	55 dBm	0.6 dB	100 MHz	6 GHz	1.8 V	5 V	802.11a/b/g/n/ac	SP3T	50 Ohms	8-TSON	6 GHz
CEL CG2430X1-EVAL															Board(s)	CG2430X1	6 GHz	100 MHz	SP3T
CEL CG2430X1	31 dBm	8-XFDFN Exposed Pad			0.6 dB	100 MHz	6 GHz	1.8 V	5 V	802.11a/b/g/n/ac	SP3T	50 Ohms	8-TSON (1.5x1.5)	6 GHz
