TSM500P02DCQ RFG

Active

Taiwan Semiconductor Corporation

MOSFET 2P-CH 20V 4.7A 6TDFN

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

MOSFET 2P-CH 20V 4.7A 6TDFN

Technical Specifications

Parameters and characteristics for this part

Specification	TSM500P02DCQ RFG

Configuration	2 P-Channel
Current - Continuous Drain (Id) @ 25°C	4.7 A
Drain to Source Voltage (Vdss)	20 V
Gate Charge (Qg) (Max) @ Vgs	9.6 nC
Input Capacitance (Ciss) (Max) @ Vds	1230 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C

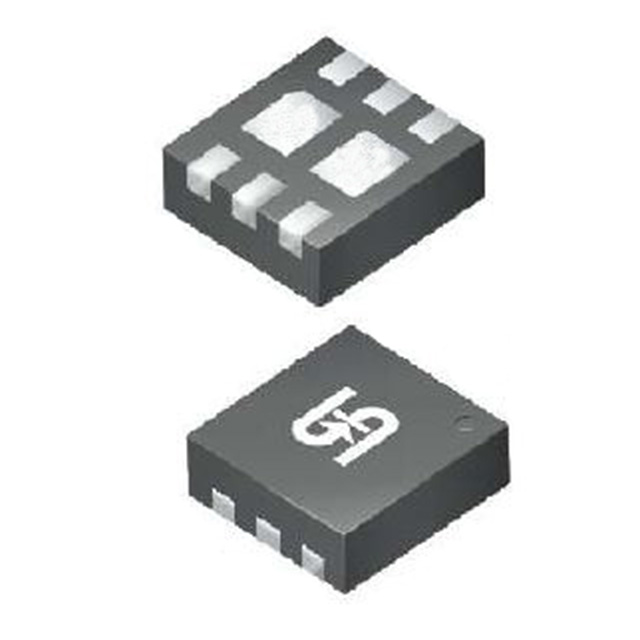

Package / Case	6-VDFN Exposed Pad
Power - Max [Max]	620 mW
Rds On (Max) @ Id, Vgs	50 mOhm
Supplier Device Package	6-TDFN (2x2)
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	800 mV

Part	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Vgs(th) (Max) @ Id	Mounting Type	Power - Max [Max]	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs	Current - Continuous Drain (Id) @ 25°C	Package / Case	Technology	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs	Supplier Device Package
Taiwan Semiconductor Corporation TSM500P02DCQ RFG	2 P-Channel	150 °C	-50 °C	800 mV	Surface Mount	620 mW	1230 pF	9.6 nC	4.7 A	6-VDFN Exposed Pad	MOSFET (Metal Oxide)	20 V	50 mOhm	6-TDFN (2x2)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 20V 4.7A (Tc) 620mW Surface Mount 6-TDFN (2x2)
