DS160PT801ACBR
ActivePCIE® 4.0 16-GBPS 8-LANE (16-CHANNEL) RETIMER
Deep-Dive with AI
Search across all available documentation for this part.
DS160PT801ACBR
ActivePCIE® 4.0 16-GBPS 8-LANE (16-CHANNEL) RETIMER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DS160PT801ACBR | DS160PT801 Series |
|---|---|---|
| Applications | PCI Express® | PCI Express® |
| Data Rate (Max) | 16 Gbps | 16 Gbps |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Channels | 16 | 16 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |

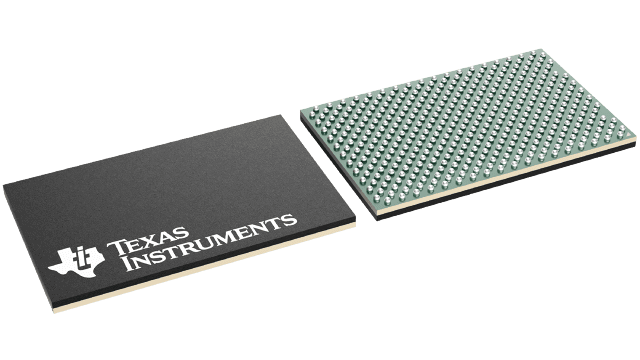

| Package / Case | FCBGA, 332-TFBGA | FCBGA, 332-TFBGA |
| Signal Conditioning | Input Equalization | Input Equalization |
| Supplier Device Package | 332-FCBGA | 332-FCBGA |
| Supplier Device Package [x] | 8.5 | 8.5 |
| Supplier Device Package [y] | 13.4 | 13.4 |
| Type | Retimer | Retimer |
| Voltage - Supply | 1.8 V, 1.17 V | 1.17 - 1.8 V |
DS160PT801 Series
PCIe® 4.0 16-Gbps 8-Lane (16-Channel) retimer
| Part | Voltage - Supply | Mounting Type | Data Rate (Max) | Applications | Package / Case | Supplier Device Package [y] | Supplier Device Package | Supplier Device Package [x] | Number of Channels | Operating Temperature [Max] | Operating Temperature [Min] | Signal Conditioning | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments DS160PT801ACBT | 1.17 V, 1.8 V | Surface Mount | 16 Gbps | PCI Express® | 332-TFBGA, FCBGA | 13.4 | 332-FCBGA | 8.5 | 16 | 85 °C | -40 °C | Input Equalization | Retimer |
Texas Instruments DS160PT801ACBR | 1.17 V, 1.8 V | Surface Mount | 16 Gbps | PCI Express® | 332-TFBGA, FCBGA | 13.4 | 332-FCBGA | 8.5 | 16 | 85 °C | -40 °C | Input Equalization | Retimer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 21.89 | |
| Texas Instruments | LARGE T&R | 1 | $ 26.01 | |
| 100 | $ 23.12 | |||
| 250 | $ 19.01 | |||
| 1000 | $ 17.00 | |||
Description
General part information
DS160PT801 Series
The DS160PT801 is a high-performance eight-lane (16-channel) PCI-Express protocol-aware retimer supporting all standard PCIe data rates up to 16 GT/s. It is used to extend the reach and robustness of high-speed PCIe serial links, from chip-to-chip motherboard links to more complex multi-connector system topologies.
The DS160PT801 supports both common-clock and independent reference clock architectures, with and without spread-spectrum clocking. This allows for maximum flexibility in defining the system clock architecture.
The eight lanes in the DS160PT801 can be bifurcated into two x4 links to support different system topologies.
