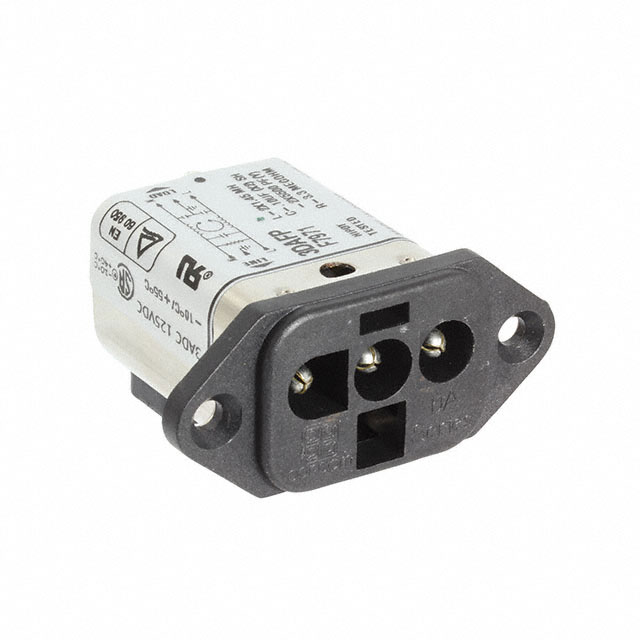

3DAFP

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 125VDC 3A PANEL MNT

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 125VDC 3A PANEL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	3DAFP

Applications	General Purpose
Approval Agency	UL, VDE, CSA
Configuration	Single Stage
Current	3 A
Filter Type	DC
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Inductance	1.45 mH
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Quick Connect
Voltage - Rated DC	125 V

Part	Filter Type	Current	Applications	Approval Agency	Termination Style	Configuration	Voltage - Rated DC	Operating Temperature [Min]	Operating Temperature [Max]	Inductance	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Frequency - Operating [Max]	Frequency - Operating [Min]
TE Connectivity Raychem Cable Protection 3DAS1	Single Phase	3 A	General Purpose	CSA UL VDE	Quick Connect	Single Stage	125 V	-10 °C	40 °C	1.45 mH
TE Connectivity Raychem Cable Protection 3DAFP	DC	3 A	General Purpose	CSA UL VDE	Quick Connect	Single Stage	125 V			1.45 mH	55 °C	-10 °C	60 Hz	50 Hz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	120	$ 12.99

General part information

DC EMC/EMI Line Filter 3 A 125V 50 ~ 60Hz Single Stage Quick Connect
