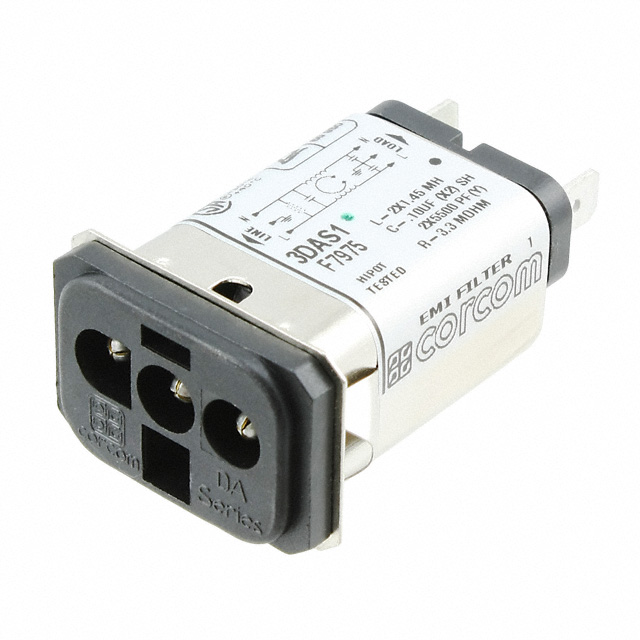

3DAS1
ObsoleteTE Connectivity Corcom Filters
LINE FILTER 125VDC 3A PANEL MNT
3DAS1
ObsoleteTE Connectivity Corcom Filters
LINE FILTER 125VDC 3A PANEL MNT
Description
General part information
3D Series
Single Phase EMC/EMI Line Filter 3 A 125V Single Stage Quick Connect
Technical Specifications
Parameters and characteristics for this part
| Specification | 3DAS1 |
|---|---|
| Applications | General Purpose |
| Approval Agency | VDE, CSA, UL |
| Configuration | Single Stage |
| Current | 3 A |
| Filter Type | Single Phase |
| Inductance | 1.45 mH |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | -10 °C |
| Termination Style | Quick Connect |
| Voltage - Rated DC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
